What Is CFM in Air Compressors

CFM, Cubic Feet per Minute, the volume of air an air compressor outputs per unit of time. PSI measures pressure, CFM measures flow. Two dimensions, not to be confused.

CFM and PSI have an inverse relationship. On the same compressor, CFM at 40 PSI output will be higher than CFM at 90 PSI. The higher the compression ratio, the less free air volume can be pumped per unit of time. So a proper spec sheet always reads "X CFM @ Y PSI," two numbers bound together. Talk about CFM without specifying PSI and the number means nothing.

Fundamentals

CFM & PSI — Two Numbers Bound Together

Three Types of CFM

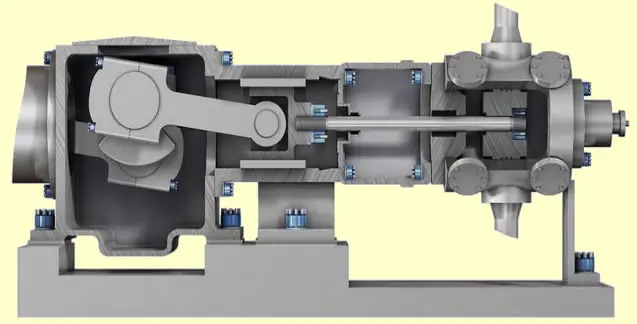

Displacement CFM, cylinder displacement multiplied by RPM, a theoretical value assuming 100% volumetric efficiency. No piston compressor reaches 100% volumetric efficiency.

SCFM (Standard CFM), measured at standard reference conditions of 68°F, 14.7 PSIA, 36% relative humidity. Comparable across brands.

ACFM (Actual CFM), output measured at the job site's temperature, humidity, and altitude.

All three types are covered in textbooks. What matters more is how manufacturers exploit them.

What Manufacturers Do with CFM Numbers

A large number of low to mid-range compressors list a bare "CFM" on the spec sheet without specifying which type of CFM it is or what PSI it corresponds to. Almost always Displacement CFM, the biggest number of the three. A machine with Displacement CFM listed at 12 might only test at 7.5 SCFM @ 90 PSI.

CFM is proportional to pump head RPM. Some manufacturers push pump head speed from the normal 1000 to 1400 RPM range up to 1700 or even 1800 RPM. The CFM number goes up, valve plate wear accelerates by multiples, cylinder temperatures spike, piston ring life drops sharply. These machines are all over Amazon and other e-commerce platforms, and the pattern is easy to spot: same rated horsepower and cylinder count, CFM significantly higher than the equivalent Ingersoll Rand or California Air Tools model, price 20% to 30% lower. No need to hesitate, that CFM was squeezed out of higher RPM. California Air Tools' Ultra Quiet series takes the opposite approach, running at very low RPM, trading for extremely low noise and very long pump head life, with CFM numbers that are actually modest for their horsepower class. The contrast between these two design philosophies tells you a lot. This is also why you cannot look at CFM alone when choosing a compressor. You need to look at how that CFM was achieved. CFM from low RPM and large displacement versus CFM from high RPM and small displacement carry completely different value.

Testing with the intake filter removed is another common practice. The filter creates airflow resistance. Remove it during testing and the numbers look better. Users install the included filter and CFM is already shorter than spec. This trick is harder to detect than speed inflation because there is no way for the user to know whether the filter was on during testing, and the spec sheet will not say.

Horsepower inflation and CFM inflation almost always come bundled. A huge number of compressors on the market labeled "3 HP" that run on a standard 15-amp household outlet cannot possibly sustain 3 HP. A real 3 HP motor's startup current would trip the breaker immediately. Look at the amperage and voltage on the motor nameplate, multiply amps by volts and divide by 746, and that gives you the upper limit of horsepower. Porter-Cable, DeWalt, and Makita are relatively honest on horsepower labeling and usually distinguish "Peak HP" from "Running HP" on their spec sheets. Many no-name brands list a single "HP" number, and that number is almost certainly peak.

Inside the Machine

Pump Head RPM & Valve Plates

Continuous Air Use vs. Intermittent Air Use

The part of sizing where mistakes happen most.

HVLP spray guns are the most demanding of all common pneumatic tools when it comes to CFM. A medium-bore gun needs around 8 to 12 SCFM @ 30 PSI of uninterrupted supply, consuming air continuously during operation. If supply cuts out for even two or three seconds, the paint surface develops dry spots and uneven texture. This is why spray applications occupy their own separate discussion in compressor sizing. Not because spraying is special, but because spraying has near-zero tolerance for CFM shortfall. A grinder or sander can still sort of work with slightly less CFM. A spray gun with slightly less CFM produces scrap.

Continuous tools get calculated at full rated CFM. Intermittent tools get estimated with "air per use × uses per minute." After the total is established, multiply by a 1.3 safety factor to cover line leaks, equipment aging, and future tool additions.

Continuous

HVLP Spray Guns

Intermittent

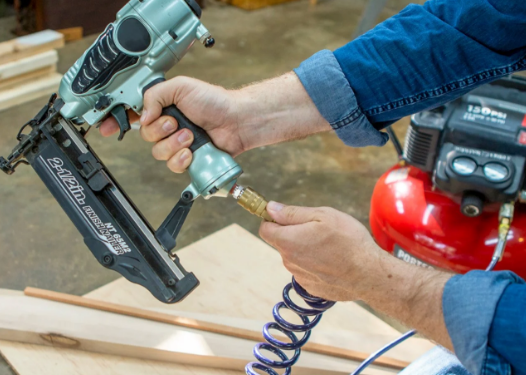

Brad Nailers & Impact Wrenches

Duty Cycle

Many portable compressors do not list duty cycle data in the manual or on the product page. If you cannot find it, estimate 50% to 60% for a piston compressor. That will be close enough.

A 60% duty cycle means 6 minutes of run time followed by 4 minutes of cooling downtime. During downtime, no compressed air is produced. A piston compressor rated at 10 CFM with a 60% duty cycle delivers a sustained average of only 6 CFM. That discount is enough to turn an otherwise adequate sizing into undersupply.

Rotary screw compressors support 100% duty cycle and can run without interruption. For any scenario requiring more than 4 hours of continuous daily supply, piston compressors will either overheat and trip frequently or lose lifespan rapidly. Screw compressors are the sensible choice.

Airflow Quality

At the same rated 10 CFM @ 90 PSI, a piston compressor and a screw compressor deliver a completely different experience at the tool end. This difference does not show up in any quantifiable spec, and no spec sheet will mention it.

Piston compressor output is pulsed. Each compression stroke pushes out a wave of air with a gap between strokes. The receiver tank dampens pulsation but does not eliminate it. When CFM consumption approaches output capacity, the tank cannot fully buffer the pulses, and the pulsation reaches the tool. Spray gun atomization becomes less uniform. Sander RPM fluctuates.

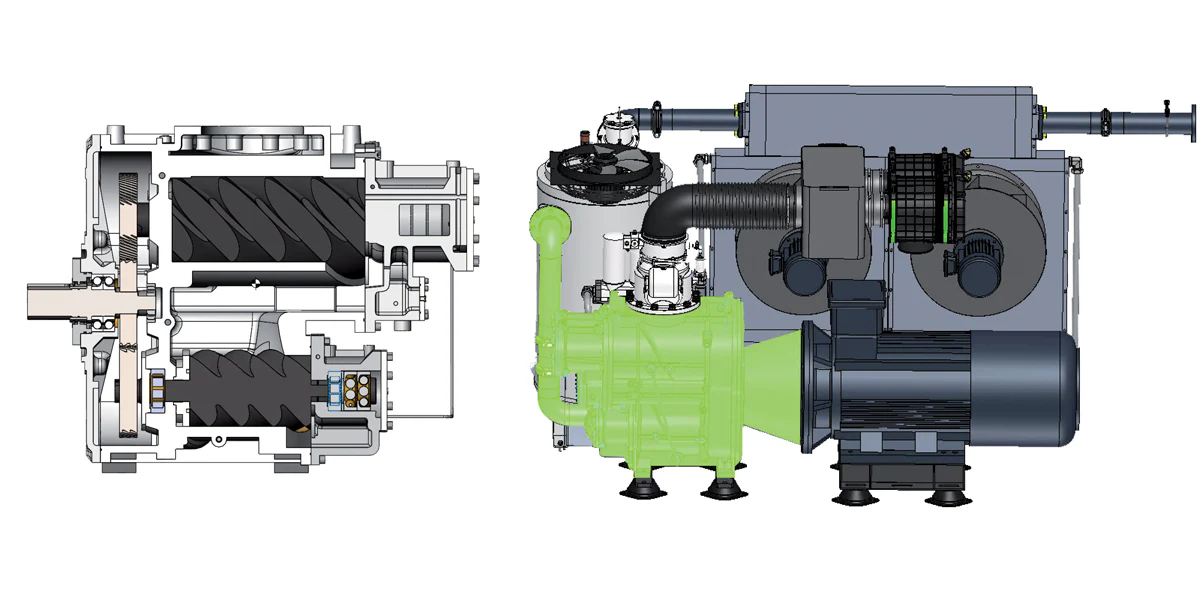

Screw compressor output is close to a constant continuous flow. Professional paint shops choose screw compressors even when CFM demand could be met by a large piston unit. Ingersoll Rand's small rotary screw UP series has high install counts in auto shops and small paint booths, for exactly this reason. Not for a bigger CFM number, but for smoother airflow.

Air Quality

Pulsed vs. Continuous Flow

Temperature and Altitude

Temperature has a rough proportional effect on CFM: for every 10°C rise, air density drops about 3.4%, and CFM drops by a similar proportion. That number is worth remembering.

Altitude has a more significant impact than temperature. As altitude rises, air thins, and each intake stroke of the compressor draws in less air mass, reducing total compressed air output. The difference between 1500 meters elevation and sea level is much larger than the difference between summer and winter. For construction on the Tibetan Plateau or the Yunnan-Guizhou Plateau, compressor sizing must add substantial margin above the sea-level baseline. How much margin depends on the specific altitude and working conditions. There is no universal correction factor. You need to look up atmospheric pressure data for the specific elevation and convert from there.

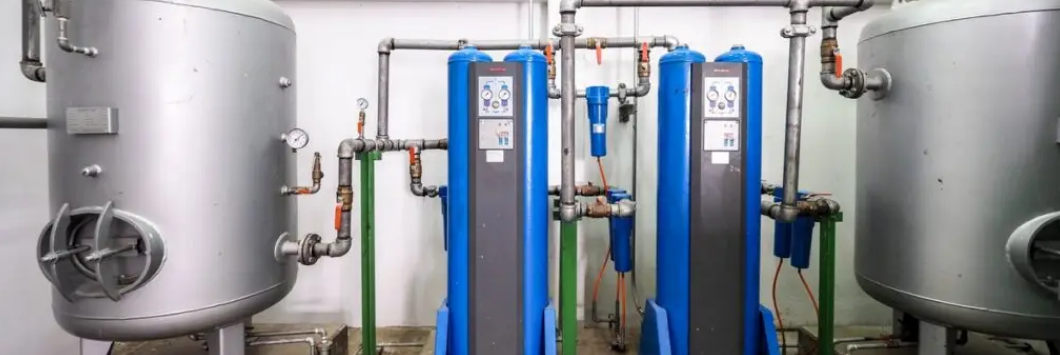

Receiver Tank

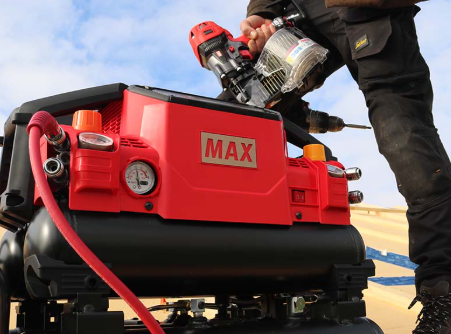

For intermittent tools like brad nailers, a large tank is very useful. A 3 CFM machine with a 60-liter tank handles continuous nailing easily because each nail uses so little air that tank pressure barely drops before the pump head catches up.

For continuous tools like spray guns, the tank only delays running out of air by a few dozen seconds. If compressor CFM cannot keep up with consumption, a larger tank changes nothing about the outcome. So when sizing, check CFM first, then tank size. That order cannot be reversed.

Storage

Receiver Tank Sizing

Air Lines

Every length of pipe, every elbow, every quick-connect fitting creates pressure drop. Pipe diameter is the primary factor. Quarter-inch ID hose is only suitable for very short runs and very low flow. Beyond 5 meters or beyond 5 CFM, 3/8-inch minimum. Beyond 15 meters, half-inch.

Elbows and quick-connect fittings cause more drop than most people assume. One 90-degree elbow creates roughly the same pressure drop as adding 1.5 meters of straight pipe. Quick-connects are worse. One standard industrial quick-connect equals 3 to 5 meters of straight pipe. String two or three quick-connects in series between compressor and tool, and the fittings alone can eat 5 to 10 PSI. Optimizing air lines is often more cost-effective than upgrading the compressor itself. Bigger pipe, fewer fittings, straighter runs. Low cost, noticeable results.

There is one hard rule on pipe material: PVC pipe cannot be used for compressed air. PVC becomes brittle under sustained pressure and when it fails, it shatters. Shrapnel flies. OSHA explicitly prohibits this application. Aluminum piping has been gaining installation share in recent years. RapidAir's aluminum piping systems are showing up more and more in home garages and small shops. Aluminum has a smooth bore, does not corrode, weighs little, and installs much easier than galvanized steel. Galvanized steel pipe is cheap, but after a few years of use the interior rusts and produces particles that contaminate the air stream. For paint spraying and other applications sensitive to air cleanliness, that becomes a problem. If you are installing new lines, aluminum is the better choice and the price gap is within reason. If you already have a set of galvanized lines running, it is not worth tearing them out just to switch to aluminum. Add a good inline filter and move on.

Fittings

Elbows & Quick-Connects

Piping

Aluminum Lines

Installation

Shop Layout

CFM Degradation

Intake filter clogging directly limits how much air the pump head can draw in. In dusty environments, cleaning or replacing the filter every two to three weeks is appropriate. Simple to say. Not many people actually do it.

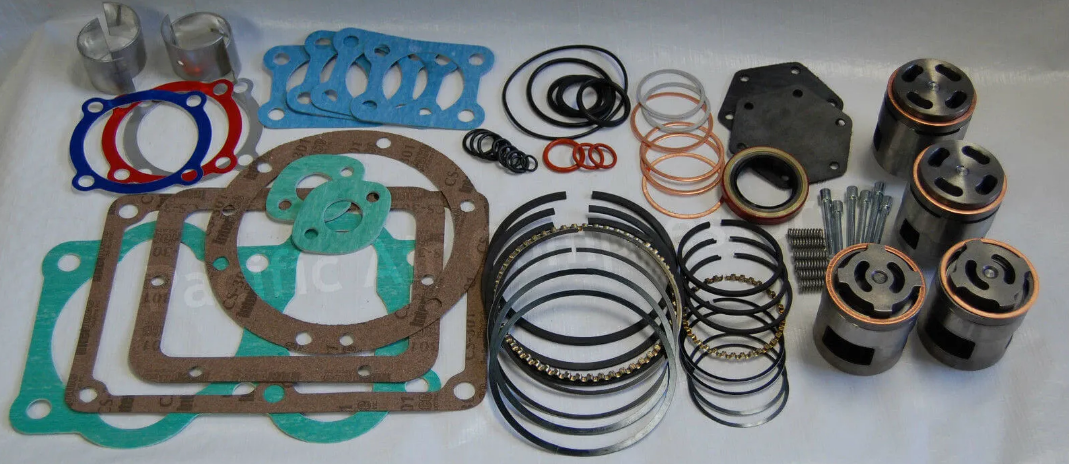

Valve plates are the component most directly tied to CFM degradation in piston compressors. Once a valve plate warps or develops grooves on its sealing surface, air blows back during the compression stroke, volumetric efficiency drops, and the symptoms are lower CFM, longer pump head run times, and slower tank recovery. High-RPM machines have shorter valve plate life. Those machines that got their CFM numbers by running high RPM, mentioned earlier, see their CFM fall off in six months to a year once valve plates wear. It drops to the level it should have been at in the first place, sometimes lower, because other components were also subjected to accelerated wear from the high RPM.

Oil-free compressors use Teflon or similar material piston rings that wear faster than the metal rings in oil-lubricated compressors. California Air Tools oil-free units have relatively long pump head life in the home and light commercial category, over 3,000 hours. Quincy or Ingersoll Rand oil-lubricated piston compressors routinely exceed 10,000 hours of pump head life. The gap is right there. Whether to go oil-free or oil-lubricated depends on the application's air purity requirements. Spraying and food processing need oil-free air, non-negotiable. For everything else, an oil-lubricated compressor with a proper oil-water separator is more economical and lasts longer. The words "oil-free" sound advanced. That has nothing to do with whether the machine is good or not.

Sizing Summary

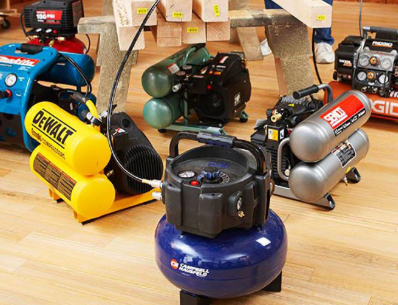

For brad nailers and small blow guns only, a Makita MAC2400 or California Air Tools 10020C class machine is enough. For HVLP spraying, sustained output of at least 12 SCFM is needed. Most portable piston compressors cannot reach that number. A 60-gallon-plus vertical two-stage piston compressor or an entry-level screw compressor is the reasonable starting point. For scenarios in between, like occasional use of an impact wrench and air ratchet plus occasional tire inflation, a mid-size piston compressor in the 6 to 8 CFM @ 90 PSI range with a 20 to 30 gallon tank is usually adequate. The DeWalt DXCMLA1683066 and Ingersoll Rand SS3F2-GM have solid reputations in this segment at reasonable prices.

Above that range, entering territory where daily continuous supply exceeds 4 hours, stop shopping for piston compressors. Screw compressors cost more upfront. Operating costs and maintenance frequency are lower. Calculate three-year total cost of ownership and for medium workloads and above, a screw compressor almost always comes out cheaper than a piston compressor of equivalent CFM output.
