Utility Rebates and Incentive Programs for Energy-Efficient Compressors

In 2019, ComEd's C&I Custom program in northern Illinois processed a compressed air system optimization at a plastics extrusion plant that included a VFD compressor, a master controller, leak repairs, and a pressure reduction. The prescriptive pathway would've valued those four measures at roughly $31,000 combined. The custom pathway, modeling system interactions, produced an incentive of $54,000. Same equipment. Same facility.

That $23,000 gap is what this article is about. Not compressed air efficiency in the abstract. The specific mechanisms inside utility incentive programs that determine whether a facility captures $31,000 or $54,000 or $0 on the same project.

Every incentive program in a regulated U.S. market has to pass the Total Resource Cost test or a state-specific variant before the commission approves its budget. The arithmetic: present value of avoided supply costs over the measure's expected life, compared against total program delivery costs.

Each custom project gets its own ratio. This matters more than anything else in the application and almost nobody talks about it.

Default incentive formulas are calibrated for portfolio-level safety margins. They're not optimized for individual projects. A project scoring 2.8 at the default incentive had room to carry a bigger payment and still clear at 1.5. The administrator won't volunteer this. Lower per-project costs mean more projects funded within budget.

In Massachusetts, the Mass Save TRM (Technical Reference Manual, updated annually, currently on version 2024) publishes measure life assumptions and deemed savings values for compressed air measures. Avoided cost assumptions are harder to find but they're in the utility's annual plan filings to the DPU (Department of Public Utilities). In Illinois, the IL-TRM version 12.0 has the compressed air measure characterizations. California's DEER database publishes ex ante savings estimates. These documents are publicly accessible through each state commission's electronic filing system. NYSERDA publishes its Technical Manual on its website.

The point is that the inputs needed to calculate a project-specific TRC ratio are available. They're scattered across regulatory filings that most facilities have never heard of, but they're available. A consultant who's done a dozen custom applications in a given territory will already have these values. On projects above maybe $80k in total incentive, hiring someone to run the TRC and negotiate upward is worth it. Below that, probably not.

Master sequencing controllers are the measure category with the widest gap between economic merit and market adoption in compressed air, and this has been documented in program evaluation filings going back at least to the mid-2010s.

The Massachusetts program evaluation for PY2019 (filed with the DPU under docket 18-110, accessible through the DPU's online filing system) flagged compressed air controls as under-adopted relative to their cost-effectiveness. The Illinois SAG (Stakeholder Advisory Group) process has produced similar findings in Ameren's and ComEd's program evaluations across multiple cycles. Focus on Energy in Wisconsin has reported the same pattern.

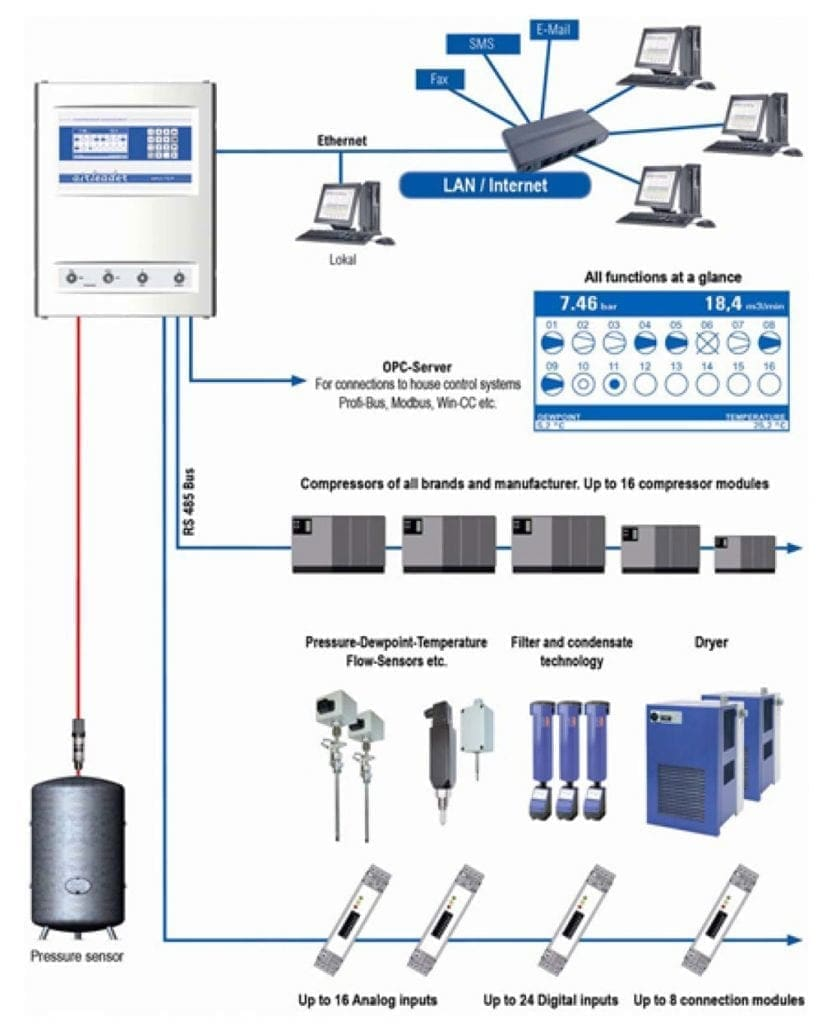

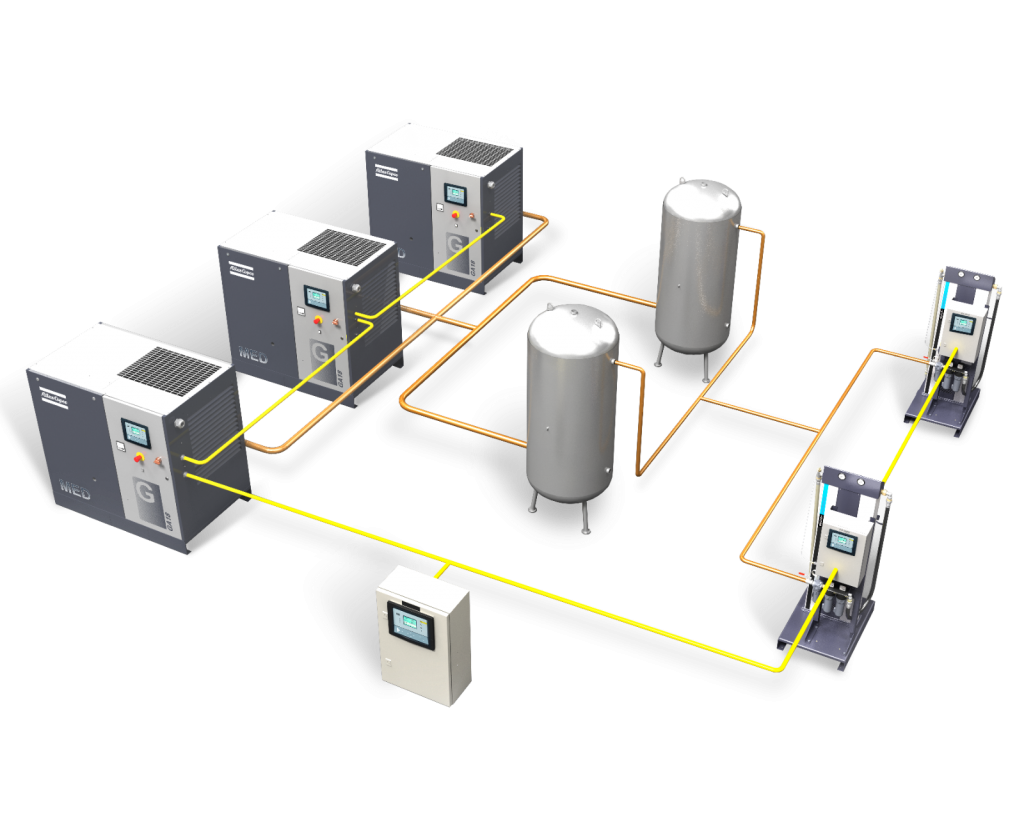

The numbers on controllers are good. $12-25k installed on a three-to-five compressor system. The controller replaces cascade pressure band sequencing, where each compressor trips on at a different pressure setpoint, with algorithmic optimization. Cascade at partial demand means multiple compressors cycling between loaded and unloaded simultaneously. An unloaded load/unload compressor draws about a third of full-load power while making no air. A controller eliminates the overlap. Runs minimum machines at maximum loading, parks everything else.

Savings range from maybe 8% on a well-tuned cascade to 25%+ on a system where compressors were added over the years without recalibrating the bands. Payback under twelve months in most cases.

Nobody buys them.

Or rather, not enough people buy them for the measure category to show healthy adoption rates in program evaluations. The evaluator recommendations across multiple states converge on "increase outreach" and "develop targeted marketing." The programs implement these recommendations. Next evaluation cycle, same finding.

What's going on is organizational. Manufacturing plants structure capital budgets around equipment categories. A compressor is equipment. The maintenance department buys it. There's a capex template for it. A controller is a panel on a wall running optimization software. It's not equipment in the way a purchasing department defines equipment. There's no line for it on the capex form. When something doesn't fit the form, it doesn't enter the planning cycle. It doesn't get funded.

The DOE's Compressed Air Challenge has been promoting system-level optimization including controls since the late 1990s. The message is out there. The economic case is clear. The purchasing infrastructure at most manufacturing plants doesn't have a slot for the product.

This isn't unique to controllers. Pressure/flow controllers, retrocommissioning, demand-side optimization studies all face the same problem. Cost-effective, incentive-eligible, invisible to the capex process.

The program can raise incentive rates, simplify applications, recruit trade allies. Can't restructure a customer's capital planning template.

Retrofit baseline: metered consumption of old equipment. Lost opportunity baseline: rated consumption of cheapest code-compliant new equipment.

Retrofit gets applied when the old machine still functions and replacement is proactive. Lost opportunity when it's already failed. The difference on a compressor replacement can be a factor of two in incentive value, because a machine from the early 2000s running load/unload at typical partial loading has specific power far worse than current code minimum.

Early retirement adders in many programs stack 25-50% on top of retrofit baseline for proactive replacements.

Data logging on aging compressors while they still run. kW, system pressure, flow. Three to six months. That logged data is the retrofit baseline and can't be reconstructed after the machine goes down. Facility that plans ahead gets retrofit plus adder plus strong documentation. Facility whose compressor fails Tuesday morning gets lost opportunity, estimated baseline, smaller check.

Same new compressor going in.

Third-party evaluators interview participants after projects close. "Would you have done this without the rebate?" Answers feed a net-to-gross ratio. Low ratio, commission cuts the budget.

Compressed air is exposed because compressors wear out anyway. If the incentive changed equipment spec or timeline or scope, say so when the evaluator calls.

Single measure: prescriptive. Multiple measures on same system: custom. Measures compound nonlinearly and prescriptive misses it. The ComEd example at the top of this article is a concrete illustration of what that compounding is worth. Engineering overhead for custom runs $5-15k, so the project needs to be big enough.

Custom programs hold final payment until 6-12 months of monitoring confirms savings. Production volume changes during monitoring are the most common problem. Output rises, consumption rises, raw comparison shows nothing. A regression normalizing energy against production fixes it. Needs to be in the M&V plan before installation.

Operator overrides during monitoring degrade measured performance. People bump pressure setpoints, start extra compressors manually, don't know this window determines the payment.

Metering gaps happen. Logger memory fills. Transducers get pulled during unrelated work.

Q1 better than Q4. Programs behind on annual targets in Q3/Q4 process faster. Trade allies with submission volume to specific programs pick up on which programs are behind. This travels through relationships.

Some programs in aggressive-mandate states (Massachusetts, California, Connecticut) exhaust budgets midyear.

Utility-subsidized at 50-100% of cost. Distributor-affiliated auditors lean supply-side because their organizations sell hardware. Independent DOE Qualified Specialists lean demand-side. Programs let the facility choose.

Stacks with efficiency rebates. Separate program, separate budget. VFD compressor with controller drops pressure on signal during grid events. Annual capacity payments accumulate. Efficiency and DR departments at the utility don't cross-refer customer accounts.

Heat recovery routes compressor waste heat to space heating, process water, boiler feedwater. Where a utility administers both electric and gas programs, heat recovery draws from both incentive streams.

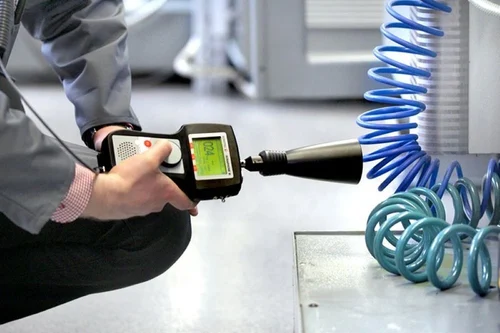

Some utilities offer recurring annual leak repair incentives. Leaks redevelop. Documented results submitted year after year.

DOE standards under 10 CFR 431 and EU Ecodesign under Commission Regulation 2019/1781 tighten on published schedules. Baselines rise. Available incentives shrink.
