OSHA-Compliant Blow-Off Nozzles and Safety Air Guns

29 CFR 1910.242(b) requires compressed air for cleaning below 30 psig with chip guarding. STD 01-13-001 specifies dead-end pressure at the blocked exit as the measurement point. No government agency certifies nozzles. The chip guarding clause is unenforceable.

01Entrainment

The Exair Model 1100 at 80 psig supply consumes about 14 SCFM. An open quarter-inch copper tube at the same pressure consumes 33 SCFM. The tube delivers more compressed air to the target and produces less blow-off force at 12 inches. Spend a minute with that. More air purchased, less result.

The reason takes some unpacking, and it is worth unpacking at length because it is the only piece of physics that matters for selecting blow-off nozzles and it is the piece that MRO purchasing completely ignores.

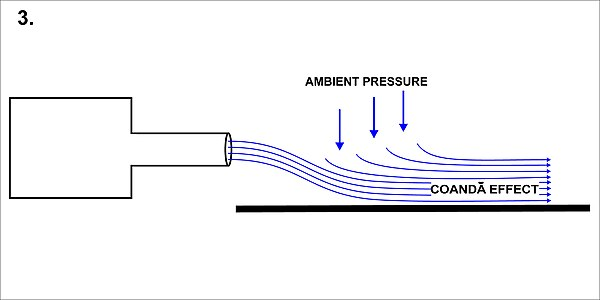

Exair publishes a 25:1 amplification ratio for the 1100. Fourteen SCFM of compressed air in. About 350 SCFM of total air out. The extra 336 SCFM is room air, entrained through the low-pressure zone created by Coandă attachment of the compressed air sheet along the central plug's curved outer profile. The compressed air exits the annular gap as a thin sheet, bends along the plug surface, and the bending accelerates the sheet in a way that drops the pressure at the nozzle core below ambient. Room air fills the differential. The entrained mass merges with the compressed air and the combined flow reaches the target as a single jet whose mass is 96 percent free room air and 4 percent purchased compressed air.

The open tube has no Coandă surface. Its exit is a turbulent, divergent plume. Some room air gets pulled in by shear-layer interaction at the turbulent boundary, which is a weak, disorganized entrainment mechanism compared to Coandă attachment along a designed surface. The tube moves maybe 50 SCFM total. Thirty-three of that is compressed air. The ratio is maybe 1.5:1. Compare 1.5:1 with 25:1.

The force at the workpiece depends on mass flow rate and velocity. The Exair jet has far more mass (350 vs 50 SCFM) at a velocity sustained over distance by the momentum of the entrained air column. The tube jet has less mass, higher initial velocity at the exit plane, but the velocity decays fast because the plume is spreading without any organized structure to maintain it. At 12 inches the Exair wins on force. At 2 inches the tube might win on force because the velocity hasn't decayed yet, but at 2 inches you've created a dead-end pressure concern because the workpiece is close enough to partially block the exit.

This is not something nozzle manufacturers explain well. Exair's marketing focuses on the amplification ratio as a number, which is correct, but the physical implication of that number, which is that the compressed air is not cleaning anything, that the compressed air is operating a pump that pulls room air in and the room air does the cleaning, does not come through in a catalog listing that says "25:1 amplification ratio, 14 SCFM at 80 PSIG." Those are the right numbers and they do not communicate the mechanism to someone scanning a parts list.

The reason the central plug geometry matters beyond the entrainment question is that the same plug that provides the Coandă surface also prevents dead-end pressure buildup. Block the exit of an annular-gap nozzle with a flat surface and there is no cavity between the plug and the surface where supply pressure can accumulate. The geometry is physically incapable of concentrating 80 psig against skin. Exair adds bypass relief ports as redundancy, but pull the ports off a plug-type nozzle and it still passes the dead-end test. Pull the plug out and nothing works: no entrainment, no compliance, no noise benefit. One part, doing everything. A maintenance technician who chips or corrodes the plug through mishandling has broken the compliance mechanism and the performance mechanism in the same event, and the nozzle will look fine from the outside.

Cluster Tip Geometry

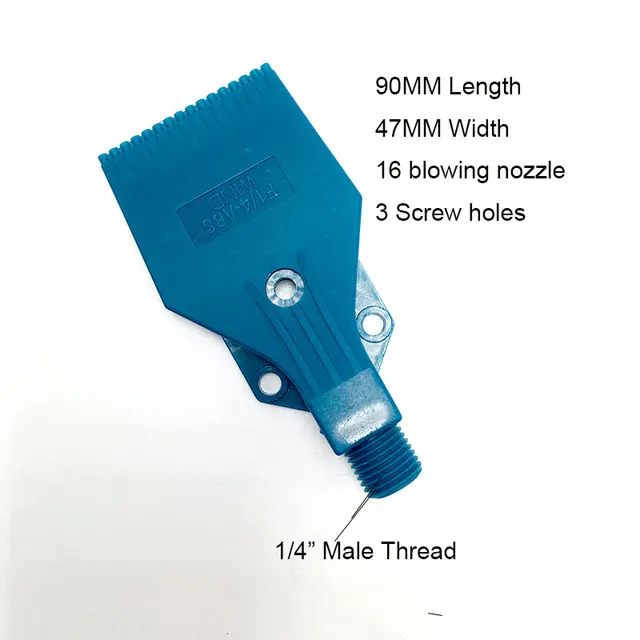

Cluster tips, the flat-face type with 15 or 20 drilled holes, work differently. Each hole is small enough that blocking it individually cannot generate dangerous dead-end pressure. Entrainment comes from shear-layer turbulence at each hole, which is less organized and lower volume per SCFM consumed than Coandă attachment. Spraying Systems' WindJet line uses this geometry. The force-per-SCFM data in the Industrial Spray Products catalog is lower than Exair's published data for annular-gap models, which is expected from the physics. For intermittent handheld use lasting a few seconds, the consumption difference per actuation may not matter. Forty WindJet nozzles on a continuous conveyor manifold running one shift, five days, 50 weeks: the annual air cost gap between cluster and annular geometry across the array is large enough to fund a compressor room project. Spraying Systems is a huge company. Blow-off nozzles are not where their engineering depth concentrates. Exair's entire business is compressed air products.

On noise. Each cluster-tip orifice generates a discrete tone. The array creates constructive interference in the 4 to 8 kHz bands. This lands where foam earplugs, even those rated NRR 29, provide their weakest attenuation. Real-world protection at 6.3 kHz from a foam plug might be 20 to 22 dB, not 29. The spectral peak from the nozzle and the attenuation valley from the protector overlap. Annular-gap nozzles distribute acoustic energy lower and broader. Same overall dBA, different risk profile. Octave-band data shows this. Exair and Silvent provide it on request.

02Silvent

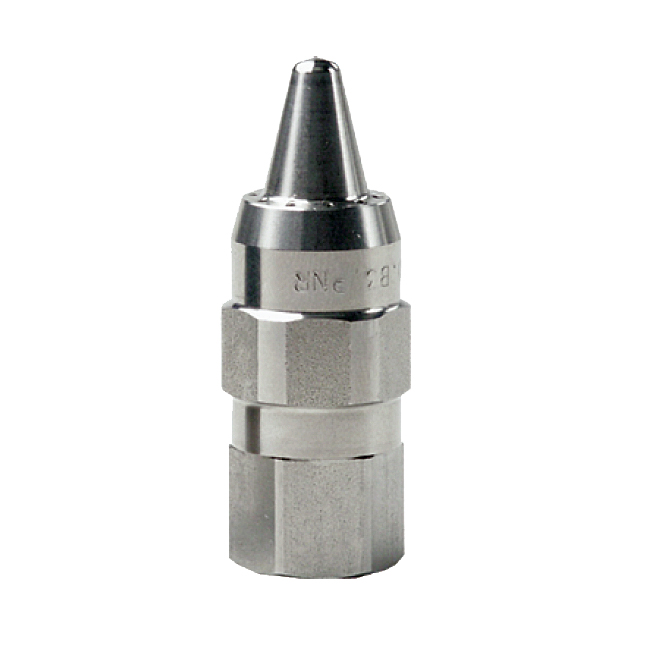

Silvent is a Swedish company that optimizes for noise reduction over amplification ratio. Internal diffuser stages, 8 to 12 dBA quieter than comparable Exair models in published data. The amplification ratios are lower. Silvent does not lead their marketing with amplification numbers. They lead with noise. Exair leads with amplification. Each company foregrounds the metric where it is strongest. A buyer who reads only one catalog gets half the picture.

Silvent's engineering targets trace to EU Directive 2003/10/EC, 87 dBA with a 3 dB exchange rate. OSHA sits at 90 dBA with 5 dB from the 1983 Hearing Conservation Amendment, which NIOSH Criteria Document 98-126 tried to update to 85 dBA with 3 dB in 1998 without success. Whether an American plant should care about the EU number is a question about whether the plant manages noise exposure to the legal floor or to what the audiological literature supports.

03Catalog Noise Numbers

All free-field measurements. Factories add 6 to 9 dBA through reverberation off hard surfaces.

04The System Problem

Auditors through the DOE Better Plants program and the Compressed Air Challenge have consistently found blow-off at 20 to 35 percent of plant-wide demand. Replacing open devices with engineered nozzles reduces consumption 15 to 25 percent.

In plants with load/unload compressors, the demand drop raises system pressure. Leaks flow more at higher pressure. If the leak load is around 25 percent of compressor output, which Compressed Air Challenge literature identifies as the industry median, a portion of the blow-off savings disappears into increased leakage before it reaches the electric bill. The plant engineer who projected the savings based on nozzle SCFM reduction alone gets a utility invoice that does not match the estimate.

Nozzle vendors, leak detection firms, and compressor service companies sell three pieces of one interconnected problem without coordinating scope or timing. The interaction effects fall between their contracts.

30 to 50 percent of fixed blow-off points run continuously regardless of product presence. Solenoid shutoff valves with photoelectric sensors pay back in weeks.

05Dead-End Testing and the Icing Condition

Flat plate, flush gauge, maximum system pressure, bypass ports uncovered. Below 30 psig passes.

The bypass port error: covering them with an oversized test plate measures supply pressure and produces false failures. OSHA prescribes no testing interval and field inspectors on routine visits do not carry test equipment. Post-injury investigations are quantitative.

Joule-Thomson & Icing

The Joule-Thomson expansion from 80 psig drops exit temperature 20°F to 40°F. Wet supply air condenses at the exit. Ice forms on cluster-tip orifices in cold conditions and blocks some holes while leaving others open. A cluster tip with four of twenty holes iced shut has a different dead-end pressure profile than the same nozzle with all holes open. The compliance test was performed at room temperature with clean dry air. The nozzle operates at 40°F exit temperature with moisture-laden air in a plant that saved money by omitting the refrigerated dryer from the compressed air system installation. Whether anyone has tested dead-end compliance under partial icing on a cluster tip is a question that came up during a conversation with a compressed air auditor at a Compressed Air Challenge seminar several years ago, and nobody in the room had an answer.

Annular gaps handle icing differently because there is one continuous exit path instead of discrete holes. Narrowing is gradual. The flow change is progressive rather than stepwise.

Operators who encounter wet parts increase pressure, which deepens the temperature drop and worsens condensation. Upstream dryers and filters fix this.

06Triggers

7 pounds sustained for two minutes causes cramping. Zip ties appear. Sub-3-pound triggers and lever handles exist. The cramping stops, the zip ties stop.

Bore enlargement for more force: standoff problem. Halve standoff, roughly quadruple force. Angle 15 to 20 degrees off perpendicular.

07Materials and Area Classification

316 stainless for food and pharma. Metal-detectable polymer for product zones with downstream inspection. Static-dissipative below 10^9 ohms/sq surface resistivity for classified hazardous locations because standard polymers above 10^13 accumulate ignition-capable charge from triboelectric interaction with the air stream.

08Air Knives

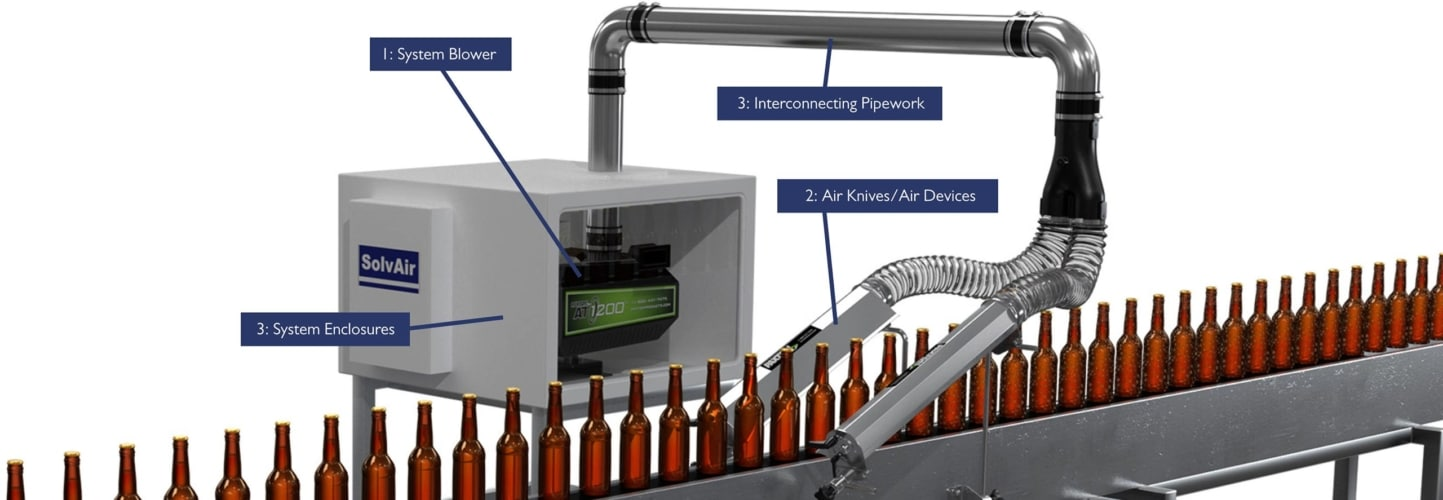

Pressure gradient along the slot length. Far end of a long knife may not match the supply end if the plenum is undersized. Dead-end testing at one point does not verify the full slot.

09Purchasing

Exair publishes SCFM, force-at-distance, dead-end, noise with octave-band on request, and material data. Silvent publishes comparable data with more noise detail. Spraying Systems publishes force and consumption for some WindJet models. Guardair makes air guns and does not publish amplification ratios or octave-band noise data. Nex Flow makes air amplifiers.

The comparison metric that matters is SCFM at supply pressure multiplied by operating hours multiplied by cost per thousand standard cubic feet. An open tube at 33 SCFM and an Exair 1100 at 14 SCFM, same supply pressure, same shift, same electricity rate: the annual cost difference per blow-off point is around $5,400. The nozzle costs under $50.
