New vs Remanufactured Air Compressors Making the Right Investment

The compressed-air industry has no enforceable legal standard defining "remanufactured." Automotive remanufacturing has ANSI/RIC. Aerospace has FAA-serialized overhaul traceability. Air compressors have nothing. A shop that changes the oil and repaints the cabinet uses the same word as a shop that bores the housing, presses new rotors, and runs the machine under load for 48 hours with vibration instrumentation on every bearing point. Nobody polices the boundary.

So everything that follows has to be read with that regulatory vacuum in mind.

Most write-ups about remanufactured compressors start with the finished product. That is backwards. Start with the core. The core is the dead or retired machine that a rebuilder buys as raw material. What that core went through during its operating life sets a ceiling on what any rebuild process can produce.

A core from a plant that did oil changes every 2,000 hours, replaced separator elements on schedule, and kept the cooling system clean is a different animal from a core that ran 14,000 hours on the same oil charge because the maintenance guy quit and nobody replaced him. Both machines can end up on the same rebuilder's teardown bench. Both can come out the other end painted and invoiced. The external appearance after rebuild converges. The internal reality does not.

Core supply has tightened. Scrap cast iron prices have pushed the floor value of a dead 100-hp compressor above $2,000. Atlas Copco, Ingersoll Rand, and Sullair all run factory reman programs now, and they use trade-in incentives to hoover cores away from the independent market. When an IR distributor offers $3,500 trade-in credit against a new R-Series purchase, the old UP6 disappears into Ingersoll Rand's reman pipeline. The independent rebuilder who would have paid $2,200 for it never gets a call.

That squeeze has downstream effects. Some independent shops have started accepting cores they would have scrapped five years ago. A housing with porosity near a bolt boss. A cooler with plugged tubes. A cracked frame that got welded by someone whose qualifications are unclear.

Ask a rebuilder what percentage of incoming cores they reject. Not what they rebuild. What they throw away. A 30 percent rejection rate suggests standards. A zero percent rejection rate suggests something else.

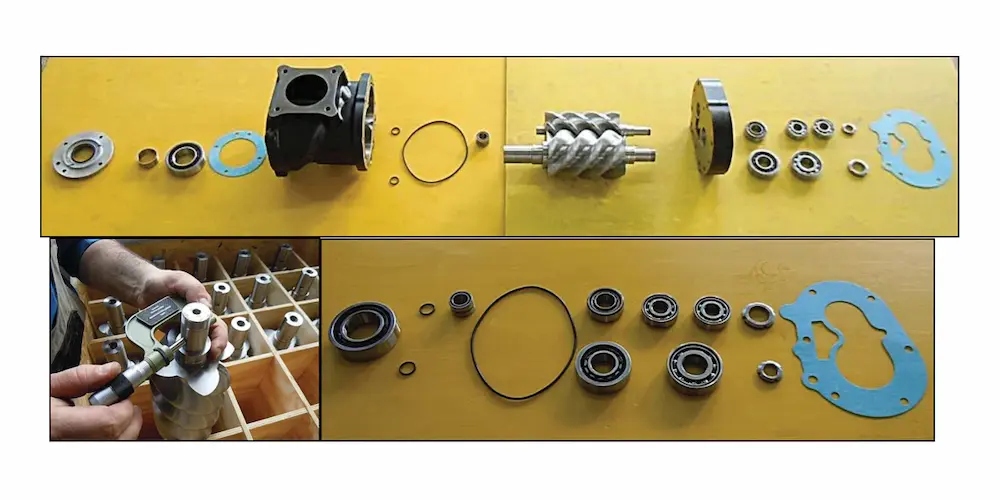

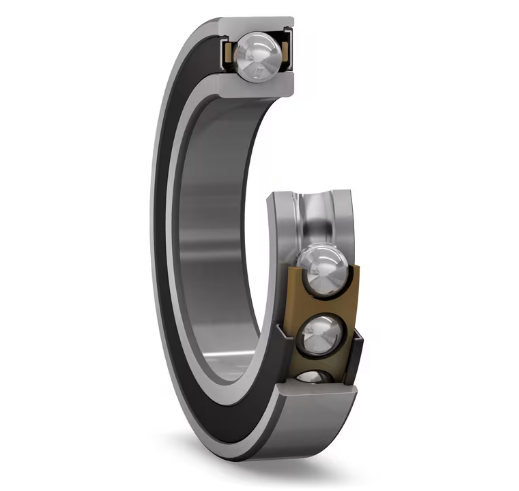

OEM airend rebuild kits for a mid-frame rotary screw list at $3,000 to $6,000. Crack one open. The angular contact bearings on the discharge end have SKF or NSK markings stamped right on the outer race with the manufacturer's own part number visible. The OEM bought them from the same authorized bearing distributor any rebuilder can access, relabeled some with a house number, boxed them, and applied a markup that can run 300 percent.

A rebuilder who knows the exact specification for an SKF 7220 BECBP, down to the contact angle, cage material, and ABEC class, buys the identical bearing for a third of the OEM kit price. Same SKF factory. Same heat treatment. Same steel. The rebuilder's version just arrives in a brown SKF box instead of a branded OEM box.

This works as long as the sourcing is legitimate. Where it breaks down: a rebuilder sees the spread between a $180 SKF 7220 from an authorized distributor and a $40 "7220" from a broker listing on Alibaba, and decides to pocket the $140. That bearing might spec correctly on paper. The steel composition might not match. The heat treatment profile might not match. The cage might be pressed steel instead of machined brass. At 3,600 RPM under axial preload at 90°C discharge temperature, those differences show up as noise first, then vibration, then metal particles in the oil, then a phone call from the customer that starts with "the compressor is making a sound."

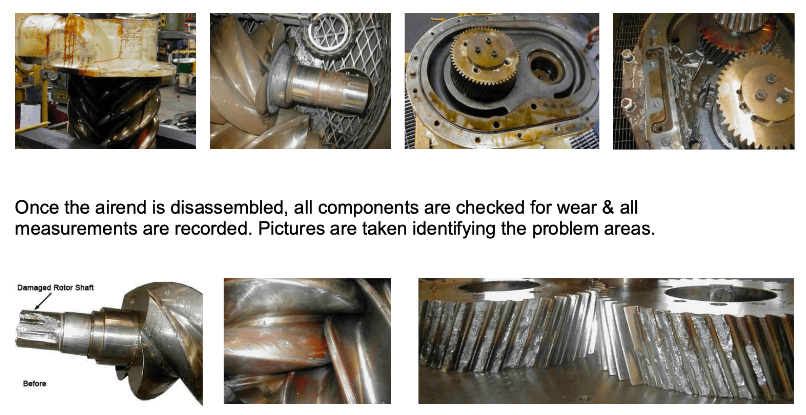

When an airend fails under warranty, the OEM almost always ships a factory-remanufactured airend as replacement, not a new-production unit. The failed airend goes back, gets torn down, inspected, rerotored, rebeared, clearanced, and fed back into the supply pipeline. This has been discussed at CAGI technical sessions. It appears in service bulletin language for anyone reading carefully.

During periods of casting supply constraint, there have been reports in the trade of factory-rebuilt airends appearing inside what distributors received and sold as new compressor packages.

A 2008 Atlas Copco GA75 and a 2020 GA75 share a model name. The airends inside them are different machines. Rotor profile design moved from symmetric to asymmetric geometries through the 2000s, and subsequent refinements driven by tighter CNC tolerances and CFD modeling have continued to improve volumetric efficiency within the asymmetric family. The 2008 airend and the 2020 airend, running at the same pressure, consume meaningfully different amounts of electricity per cubic foot of air delivered.

And electricity is not one cost among several. Electricity is the cost. A 100-hp compressor running two shifts at $0.09/kWh, which is close to the U.S. industrial average, spends roughly $40,000 per year on power. Buy that compressor for $50,000 and run it for seven years: $280,000 in electricity, $50,000 in capital. The ratio is five or six to one. Everything else, the oil, the filters, the separator elements, the occasional belt or coupling, adds up to maybe $4,000 a year. Capital cost and maintenance together are background noise against the electricity number.

An older rotor profile carries a specific energy penalty around 6 to 8 percent compared to current generation. On $40,000 a year in electricity, that penalty costs $2,400 to $3,200 annually. Over seven years, $17,000 to $22,000. If the reman unit saved $20,000 at purchase, the electricity penalty ate the savings. The buyer paid the same total amount and now owns an older machine.

Below about seven years of platform age, a well-rebuilt reman unit pencils out for primary production duty. Past twelve years, the energy penalty disqualifies it from any high-utilization role. Between seven and twelve, you need to know which specific model year carried which airend generation. Atlas Copco did not update the GA airend on a clean annual boundary. Ingersoll Rand's UP6 went through a mid-cycle airend change that shifted specific energy by enough to move the math from one side of the ledger to the other. This information does not appear on a spec sheet or in a sales brochure. It circulates among service technicians and compressed-air auditors who have torn these machines open across vintages.

The motor conversation barely comes up in most new-versus-reman discussions, which is strange given how much a motor failure costs.

A compressor motor lives in heat, oil mist, vibration, and repeated thermal cycling from load/unload transitions. Twelve years of that degrades winding insulation in ways that standard megger testing cannot reliably detect. A megger test applies DC voltage between the winding and ground and reads leakage current. It catches gross insulation breakdown to ground. It is blind to turn-to-turn shorts within a single coil, which is the failure mode that actually kills these motors in the field. A motor can read 500 megohms on a megger and have an interturn fault that will burn the coil open under thermal stress within a few months.

Surge comparison testing finds what meggering misses. A surge tester hits the winding with rapid high-voltage pulses and compares the resulting waveforms between phases. A turn-to-turn short creates a visible distortion. If a remanufacturer says the motor was "tested" and cannot produce surge comparison results, the testing was incomplete.

Rewind quality varies enormously. A VPI rewind, where the winding is vacuum-impregnated with resin and cured under pressure, produces a solid monolithic insulation mass with no air voids. No voids means no moisture ingress paths, no partial discharge sites, no thermal weak spots. A properly done VPI rewind at a good motor shop outlasts the original OEM winding, because the OEM winding was almost certainly dip-and-bake, which is faster and cheaper and leaves voids.

A bad rewind shop, the kind that advertises 48-hour turnaround on any frame size, dips the wound stator in a trough of resin, drains it, and shoves it in a bake oven. Resin coverage is uneven. Voids remain. The motor comes back, runs for a while, and the insulation fails at a hot spot where the resin never penetrated.

The difference between these two outcomes is the difference between a $2,500 rewind and a $1,400 rewind. It decides whether the motor runs for another fifteen years or another fifteen months. Ask who did the motor work. If the rebuilder names a specific EASA-member motor shop, that is a meaningful answer. If the answer is vague, draw the appropriate inference.

Short version: a discontinued controller on a remanufactured compressor is a parts timebomb. A failed display board for a controller that went out of production in 2015 may be on a twelve-week back-order at a price that has tripled since the last time anyone bought one. The compressor sits idle while procurement scrambles.

Longer version: modern compressor controllers from 2020 onward record continuous trend data on discharge temp, sump pressure, motor amps, and sometimes bearing vibration. They speak Modbus TCP, Ethernet/IP, or both. They integrate with centralized compressed-air management platforms. They enable remote monitoring.

A 2012-vintage controller starts and stops the motor and logs a fault code if the discharge temperature exceeds the shutdown limit. That is about it. The machine runs fine as a standalone unit until a board component fails and the obsolescence clock starts ticking.

Some remanufacturers install aftermarket controllers from companies like Air Logics or CMC. This adds cost and adds years to the machine's useful life. The configuration has to match the specific airend displacement, motor nameplate data, and thermal protection requirements of the base machine, and getting that configuration wrong can allow operation outside safe limits. So the quality of the controller retrofit matters as much as the decision to do one.

Electrolytic capacitors on the DC bus of a VSD inverter degrade with calendar age. Not operating hours. Calendar age. Temperature accelerates the degradation. A capacitor bank that spent a decade inside a compressor enclosure running at 45°C ambient has lost capacitance along an exponential curve that gets steeper near end of life. A ten-year-old inverter can bench-test fine and fail in actual service within months as the capacitors cross the failure knee.

Replacing an inverter runs 20 to 30 percent of a new compressor's purchase price. A buyer who saves $25,000 going reman and then pays $15,000 for a drive replacement eighteen months later has not saved anything and now owns a fifteen-year-old compressor frame with a new drive bolted to it.

Fixed-speed remanufactured units do not carry this risk. The motor contactor, the across-the-line or wye-delta starter, the control transformer: these components are simple, cheap, and long-lived.

Pre-2015 integrated refrigerated dryers use R-404A. GWP of 3922. The Kigali Amendment and national HFC regulations are phasing it down. Prices have climbed. Supply is tightening.

Look at the dryer data plate on any reman compressor with an integrated dryer. If it says R-404A, every future refrigerant service event will be more expensive than the last. If the rebuilder converted to R-513A (GWP 631) or R-1234yf, they spent money and thought ahead. This takes ten seconds to check and matters for years.

Atlas Copco, Ingersoll Rand, and Sullair have all quoted lead times exceeding 20 weeks on popular models during recent supply chain disruptions. A remanufactured unit ships in two to four weeks because the physical machine already exists.

When a primary compressor blows an airend on a Tuesday and the plant goes quiet, nobody runs a total cost of ownership model. They call every compressor dealer within 200 miles and ask who can put a machine on a truck.

Some equipment lessors refuse to write leases on remanufactured equipment. Others charge 150 to 250 basis points above standard rates or require larger down payments. Boiler and machinery insurers sometimes require third-party mechanical inspection reports before covering reman units. Section 179 and MACRS depreciation treatment can differ between new and used equipment. Check with the lender, insurer, and tax advisor before signing anything.

Four numbers over five to seven years: acquisition including installation and commissioning; annual energy based on specific energy, hours, and electricity rate; annual maintenance for consumables and a repair reserve; risk-weighted downtime, meaning estimated failure probability times outage duration times hourly production loss.

Most buyers skip this entirely and buy whatever fits the quarterly budget. Most buyers end up spending more over the ownership period.
