How Much CFM Do I Need — A Sizing Guide by Application

CFM, cubic feet per minute. You have to deal with this number before buying any equipment related to airflow. The sizing guides you can find online are basically a table plus a few sentences, tools matched to CFM, look it up and place your order. This article is written for people who looked up the table and still aren't sure what to buy.

There are three possible meanings behind the CFM printed on an air compressor's nameplate, and buyers rarely bother to tell them apart.

Displacement CFM is the theoretical value you get from multiplying cylinder volume by RPM. Seal losses, valve blowback, thermal expansion, none of that is factored in. This number runs thirty to forty percent higher than reality. SCFM is the output converted to standard reference conditions of 14.5 PSIA, 68°F, and zero humidity. If you want to compare two compressors from different brands, this is the only number that works. ACFM is the actual volume of air coming out of the port under your shop's specific temperature and altitude conditions.

The relationship between the three goes like this: Displacement is the biggest, SCFM sits in the middle, ACFM is the smallest. If you run a shop at five thousand feet elevation in Colorado, a machine rated at 10 SCFM might only deliver around seven or eight when it gets to you.

CAGI runs a voluntary Performance Verification Program. Manufacturers pay to have a third party test their machines, and the results go up on the CAGI website as a Data Sheet. Voluntary. Brands that haven't participated, whatever they write on the label is whatever they write on the label.

CFM requirements for common tools, every sizing guide has this part, listed here before getting to the point:

Compressor Selection

Matching Duty Cycle to Tool Demand

Reciprocating compressors have their own duty cycle limits as well. They run for a stretch and then have to stop and cool down. A compressor rated at 15 CFM with a 75% duty cycle can sustain roughly 11 CFM of continuous supply. This figure is virtually absent from the spec sheets of consumer-grade products. Rotary screw compressors don't have this limitation. A 12 CFM rotary screw machine delivers more usable air in continuous-use scenarios than that 15 CFM reciprocating unit. The bigger number on the spec sheet does not mean more available air. There's a duty cycle sitting between the two.

90 PSI as the industry default working pressure: most pneumatic tools reach full performance at 70 to 75 PSI. 90 PSI exists as headroom for line losses. If the plumbing is done well, dropping system pressure to 80 PSI cuts energy consumption by about 7% and slows down wear on seals.

After calculating you need to check the fan performance curve. Horizontal axis is CFM, vertical axis is static pressure. Convert the total resistance of your duct system into a static pressure value in inches of water gauge, find that point on the curve, and the CFM you read off the horizontal axis is what this fan will actually deliver once installed in your duct system. The rated number is at zero resistance. Connect ductwork and you won't hit it.

Stall Risk

Axial Fan Curves

Smooth Curves

Centrifugal Fan Curves

Axial fans have a hump in their performance curve in the medium-to-high static pressure range. If the operating point lands near that hump, a small disturbance can push it over to the other side into the stall region, where airflow drops by half or more while the fan keeps spinning and drawing power. Centrifugal fans don't have this problem. Their curves are smooth. For duct systems with higher resistance, centrifugal fans are the safer pick. Nothing to do with CFM being bigger. It's about the shape of the curve.

Makeup air. However much air you exhaust, you need to bring back in the same amount. Without it you get negative pressure. Strong negative pressure with gas-fired appliances in the building means flue gases get sucked back indoors. A meaningful number of carbon monoxide incidents reported in the HVAC industry trace back to exhaust systems without matching makeup air.

Building envelope tightness affects exhaust performance. New construction built to passive house standards is airtight. Turn on the exhaust fan and negative pressure shows up immediately. A building from the 1980s leaks everywhere. The exhaust fan runs at full speed, air rushes in through gaps around doors and windows, the total air exchange looks generous, but the air in the contaminated zone may not be getting pulled out at all. Air takes the path of least resistance, not the path drawn on the design drawings. Smoke testing exists to verify this.

This application differs from every other one covered here: too much CFM is also a problem.

HVLP spray guns normally achieve transfer efficiency above 65%. Set the face velocity too high and the paint mist gets blown off the workpiece surface before it can land. Transfer efficiency drops below 50%, meaning half the coating material becomes waste. Set the face velocity too low and solvent vapor concentration rises, approaching the LEL.

CFM = booth cross-section area (square feet) × face velocity (FPM)

Crossdraft booths: face velocity 75 to 100 FPM. Downdraft booths: 50 to 75 FPM. A crossdraft booth with a 10' × 8' opening, at 100 FPM, needs 8,000 CFM.

Industry benchmark for face velocity uniformity: deviation at any measurement point should not exceed plus or minus 20% of the average.

Waterborne coatings need airflow to help evaporate water, so face velocity toward the upper end of the range is more appropriate. Solvent-borne coatings evaporate quickly on their own, and excessive face velocity causes dry spray. High-solids coatings have high viscosity and large atomized droplets that can't handle strong airflow deflection. When switching coating systems in the same booth, the ideal face velocity should change with it. A VFD-driven fan makes this easy. Without one, the only option is rough adjustment through inlet dampers.

If there's one thing worth expanding on regarding CFM in this field, it's flex duct.

Flex duct is cheap, fast to install, shove it into the ceiling cavity and you're done. North American residential construction is full of it. The problem is the corrugated inner wall. Same diameter, same length, the resistance difference between sheet metal duct and fully stretched flex duct is roughly one and a half to two times. Flex duct that isn't pulled taut (compression ratio above 4%), the resistance reaches three to five times that of sheet metal. ACCA Manual D has an equivalent length correction table for this. Most installation crews don't consult it.

Return air grilles are often undersized. Everyone pays attention to the supply side, the return side gets shortchanged. High return resistance means higher total system static pressure means lower fan output.

Homeowners swap their MERV 8 filter for a MERV 13 on their own. Resistance goes up. Nobody tells them the fan might not be able to keep up.

Evaporator coil fouling is something that takes three to five years to become noticeable. Dust accumulates on the coil fins bit by bit, resistance climbs year over year.

The starting point here is different from every previous section. Not air changes per hour, not face velocity, but heat load.

Data Center Cooling

Heat Load Drives CFM Requirements

How much ΔT to allow requires a tradeoff. Small ΔT means higher CFM demand, higher fan energy, more uniform temperatures. Large ΔT means less CFM needed, but the intake temperature at the top of the cabinet (affected by hot exhaust from equipment below) risks exceeding the ASHRAE recommended upper limit. Hot aisle/cold aisle containment physically separates the cold supply air from the hot exhaust air.

In an N+1 redundancy setup where all units run simultaneously (which is the normal operating state for most data centers), the total CFM delivered under the raised floor exceeds what the servers actually need. The excess cold air leaks out through gaps between floor tiles, cable cutouts, and vacant rack positions. It mixes with hot aisle exhaust. The CRAC units' sensors read a lower return air temperature, conclude the load is light, and reduce output. This is bypass airflow. In measured data, this bypass fraction can account for thirty to sixty percent of total supply air. Blanking panels to cover empty rack slots, cable grommets to seal cable penetrations, controlling the floor tile open area ratio: these items cost a few dollars each and in measured results frequently improve CFM utilization efficiency more than adding another CRAC unit.

"1 horsepower equals roughly 650 CFM" is a widely circulated figure that should not be used for sizing. Impeller design, scroll housing geometry, RPM, system resistance, every one of these affects output. The spread between different brands at the same horsepower exceeds 40%. Sizing should be based solely on the performance curve. If a manufacturer doesn't provide a performance curve, consider why they don't.

Multi-machine shops use blast gates for zone management. Open the gate for the machine in use, close the rest. Total CFM concentrates on the open branch, and velocity is sufficient. The discipline required is that the number of gates open at any moment must stay within the design limit. Open all of them and the total CFM gets split evenly across every branch. Velocity in each branch can drop below the transport threshold.

Installing a cyclone separator on an existing system adds its own pressure drop (2 to 4 in. w.g.) to the system's total static pressure. Install it without recalculating the fan operating point and the suction at the tool ports drops. Filter bag life gets longer, dust collection effectiveness at the tool may get worse. Do the math before installing.

Altitude

Elevation Effects

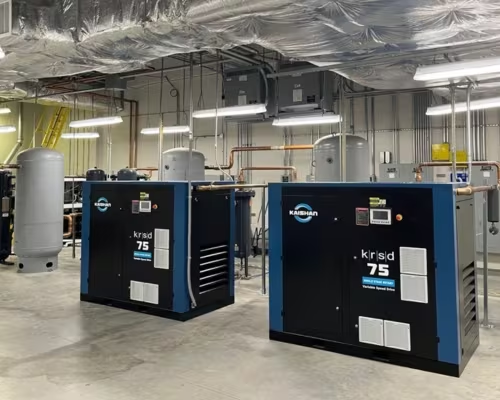

Temperature

Thermal Expansion

Leakage

System Losses

Air density decreases by about 3% for every 1,000 feet of elevation gain. Denver sits at just over five thousand feet. Air density there is about 17% lower than at sea level. Effective output from compressors and fans drops accordingly. Thinner air also means reduced motor cooling. At high altitude, motors may need to be derated.

For every 20°F rise in temperature, air volume expands by about 4%. In high-temperature environments, multiply the standard CFM by (T + 460) / 528.

Leakage in industrial compressed air systems consumes an average of twenty to thirty percent of total air production. When total pressure drop across the piping exceeds 10% of the working pressure at the point of use, upsizing the pipe diameter makes more sense than upsizing the compressor.
