Fifteen by compression mechanism, if the count includes every variant that has its own engineering identity. The internet says three. Compressor distributors say three because they stock three. Engineering handbooks say six to eight because they merge variants. The answer changes depending on who needs it and what they plan to do with it.

The more interesting question is why fifteen types exist when three would be tidier. The reason is that compressed air is not one application. It is hundreds of applications pretending to be one because they all share the same pipe.

Positive Displacement and Dynamic

Two families. Positive displacement traps gas and shrinks the pocket. Dynamic spins gas through an impeller and converts velocity to pressure in a diffuser.

The behavioral gap between these families is wide enough that choosing the wrong one can wreck equipment.

A positive displacement compressor tolerates sloppy piping, clogged filters, fluctuating demand. The flow barely changes as backpressure rises; the motor just works harder. A centrifugal compressor has a surge line on its performance map, and if the operating point crosses that line because someone downstream closed a valve or a process tripped off, the airflow reverses through the impeller. Repeatedly. At several cycles per second. The thrust bearing set, which in a machine like the Ingersoll Rand Centac is a tilting-pad design carrying several thousand pounds of axial load, absorbs impacts it was never sized for. Replacement cost is significant. Downtime is worse.

This is not an obscure failure mode. Every centrifugal compressor installation has a dedicated anti-surge controller. FS-Elliott, Atlas Copco, and Ingersoll Rand all include anti-surge logic in their compressor control panels. The controller monitors flow (usually inferred from differential pressure across the inlet bellmouth) and discharge pressure in real time, and opens a blow-off valve or recirculation path within a few hundred milliseconds when the operating point approaches the surge boundary. The air vented through that blow-off valve cost electricity to compress. At low demand, blow-off losses reach 20 percent of motor input. Nobody puts that number in the sales proposal.

Reciprocating Compressors

Single-acting piston machines are everywhere. Tire shops, body shops, dental offices, garages. The mechanism is obvious and has not changed in any meaningful way since the 19th century.

What has changed is the valve technology, and this is where the cheap machines show their cost. An automatic plate valve or reed valve in a single-acting compressor running at 3,000 RPM has about 10 milliseconds per event to open, seat against the stop, stabilize, and then close again cleanly. It does not stabilize. It bounces off the stop, flutters, allows reverse flow during the settling period, and creates a pressure drop across its own face that directly reduces volumetric efficiency. Hoerbiger, the Austrian company that supplies valve components to a large fraction of the global reciprocating compressor fleet, has published enough technical material on valve dynamics to fill a semester course. The short version: a $600 compressor from a hardware store might be rated at 10 CFM at 90 PSI. Measured at the hose coupler after six months of service with the valves starting to seat poorly, the delivered number could be 7 CFM. The motor still draws the same current.

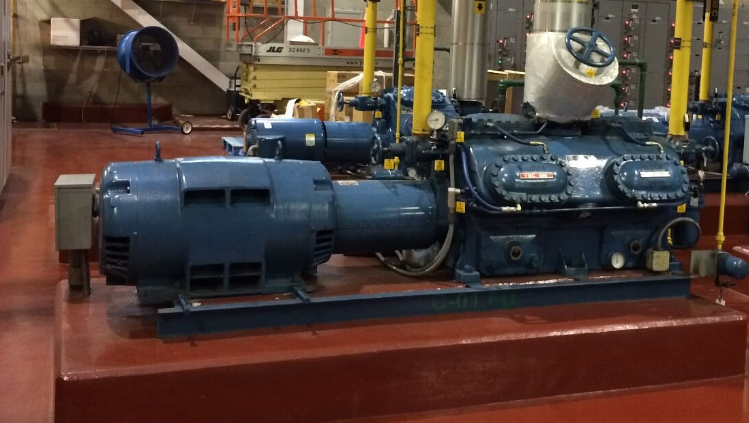

Double-acting piston compressors compress on both faces. Ariel Corporation in Mount Vernon, Ohio, owns this category for gas service. Their frames run to 12,000 HP and they ship more large reciprocating compressors than anyone. In air service specifically, double-acting recips have lost ground to rotary screw machines for decades and now survive mostly in high-pressure work (PET bottle blowing at 30 to 40 bar, breathing air at 200 to 300 bar) and in locations where the nearest factory-authorized service center is measured in days of travel. The packing comes out with a wrench. The valves come out, go to the bench, get lapped, go back in. A crosshead bearing is measured with a micrometer and shimmed on the spot. When a rotary screw airend wears out, the distributor quotes a replacement assembly at 50 to 60 percent of a new machine. That is not a repair. That is a partial repurchase.

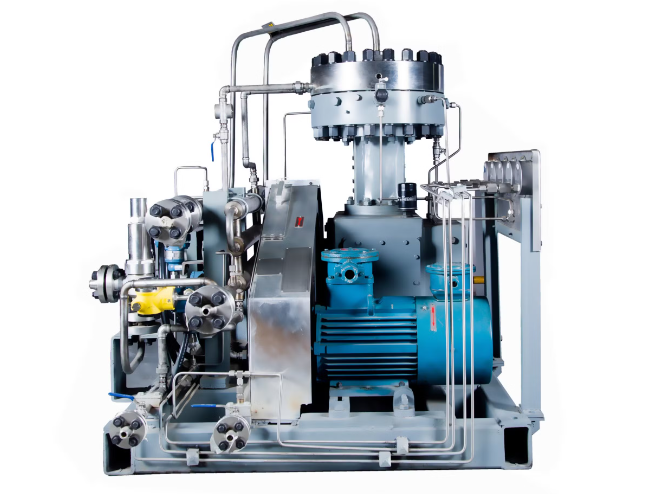

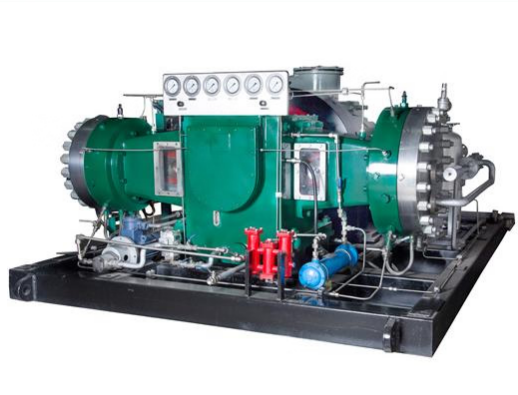

Diaphragm compressors use a flexing metal membrane driven by hydraulic fluid pressurized by a piston. The process gas never touches the piston, the oil, or any dynamic seal. PDC Machines in Warminster, Pennsylvania, and Andreas Hofer Hochdrucktechnik in Germany build these for hydrogen fueling. The machines are slow, heavy per unit of flow, and expensive. Nobody uses them when they have alternatives. For hydrogen at 700 to 900 bar dispensing pressure going into a fuel cell vehicle, there is no alternative. The proton exchange membrane in a fuel cell is poisoned by sulfur compounds and hydrocarbons at parts-per-billion concentrations. A conventional piston compressor with ring seals would contaminate the gas. A screw compressor would contaminate the gas. A diaphragm compressor does not, because the gas never contacts anything that could contaminate it. The number of companies with production experience at these pressures in hydrogen service is small enough that it constitutes a supply chain bottleneck for hydrogen infrastructure rollout, though this gets less attention than electrolyzer capacity or platinum catalyst costs.

Free-piston compressors eliminate the crankshaft. Linear motor drives the piston directly. These show up in Stirling cryocoolers and some portable oxygen concentrators. The concept is elegant. The market is tiny.

Screw Compressors

This section is longer than the others because screw compressors account for the majority of installed industrial compressed air capacity between 10 and 500 HP, and because the commercial structure surrounding them contains dynamics that affect buyers more than the thermodynamics do.

Atlas Copco, Ingersoll Rand, Kaeser, Sullair, CompAir. The rotor profiles in their machines all trace back to SRM, Svenska Rotor Maskiner, which developed the helical screw compression concept in Sweden starting in the 1930s and spent decades refining rotor tooth geometries. Atlas Copco eventually acquired SRM. The 4+6 asymmetric profile (four male lobes, six female flutes) that replaced older 4+4 symmetric designs shortened the sealing line between rotors and improved volumetric efficiency by reducing internal leakage. Kaeser calls their variant the Sigma Profile and has built substantial marketing around it. The aerodynamic principle underneath is the same across manufacturers.

The machines are mechanically similar. The business models around them are not.

Some manufacturers have engineered their airend mounting flanges, oil injection port locations, or shaft seal specifications to dimensions that do not match any third-party airend supplier's standard product. This shows up in patent filings. It shows up in the compatibility matrices that independent service companies maintain. It shows up in the phone call a plant manager makes five years after installation when the distributor quotes a number for the airend that makes the original purchase price feel like a down payment.

A new 75-HP oil-injected screw compressor sells for $15,000 to $25,000 depending on brand, options, and how many distributors are bidding. The manufacturer's margin on that sale can be close to zero in competitive situations. The margin recovery happens over the next decade. Proprietary compressor oil branded and priced at a premium over equivalent Group II or Group III base stock lubricants. Separator elements with dimensions that do not match any aftermarket catalog. Oil filters with proprietary thread pitches. Air intake filters with non-standard housing geometry. And eventually, at 40,000 to 60,000 hours or sooner if maintenance was deferred, the replacement airend. The airend is a matched set of rotors in a precision-bored housing with bearings pressed to spec. It ships as a unit. It costs $8,000 on a small frame and $35,000 or more on a large one.

Oil is injected into the compression chamber at 10 to 20 liters per minute at operating temperature. It seals rotor clearances, absorbs compression heat, lubricates contact surfaces. On the discharge side, a separator vessel and coalescing element remove most of the oil. A new separator element on a well-maintained machine brings carryover down to 2 to 3 ppm. A separator element at 6,000 hours with degraded oil in a compressor room running hot because the ventilation louvers are blocked with cardboard (this is common enough that Atlas Copco's SmartLink remote monitoring flags compressor room ambient temperature as a tracked parameter) may pass 15 to 20 ppm and nobody will know until the paint booth rejects start climbing or the pneumatic cylinder seals start swelling.

Oil-free screw machines use timing gears to synchronize rotor rotation without contact. No oil in the compression chamber. No sealing, no cooling, no lubrication in the gas path. Two stages with intercooling to reach standard industrial pressures because single-stage discharge temperatures without oil cooling become destructive. Atlas Copco's ZR/ZT series and Ingersoll Rand's Sierra series dominate oil-free screw installations globally. The price premium is 30 to 50 percent. Energy consumption per CFM is 10 to 15 percent higher. These penalties are thermodynamic consequences. Removing the sealing medium increases leakage. Removing the cooling medium increases discharge temperature and compression work.

ISO 8573-1 Class 0 exists because of the gap between "we filtered the oil out" and "there was never any oil." Downstream filtration on an oil-injected machine works when the separator element is fresh, the oil is in spec, the thermal valve is functioning, and the compressor is running at design conditions. When any of those conditions is not met, oil carryover spikes and the downstream filters become the last line of defense for product quality. Danone and Nestlé specify oil-free compression for food-contact air in their supply chain standards. FDA 21 CFR Part 211 creates equivalent expectations for pharmaceutical manufacturing.

Other Rotary Types, Briefly

Rotary vane compressors. Mattei in Italy has built a decades-long business on these. Sliding vane in an eccentric rotor, crescent-shaped compression chambers. Mattei claims 100,000-hour vane life in some models. The market has contracted because the distributor channel consolidated around screw compressor product lines. A Kaeser distributor has no reason to suggest a Mattei.

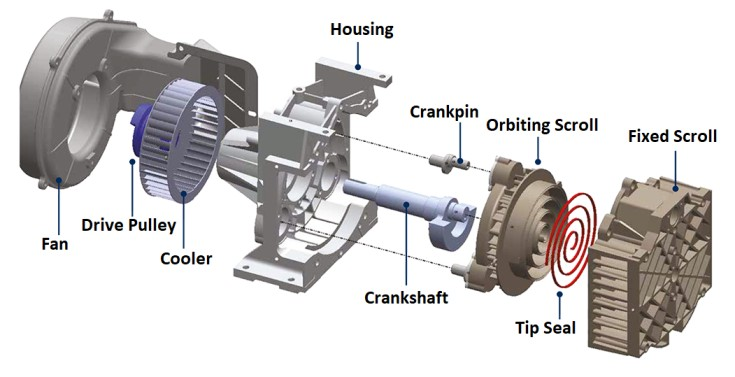

Scroll compressors from ANEST IWATA and Atlas Copco (SF series). One orbiting part. No rotation. Vibration below 0.5 mm/s RMS. Oil-free. Hospitals and laboratories buy these. The geometry cannot scale past 40 to 50 HP because scroll profile machining tolerances do not become easier to hold on larger parts.

Liquid ring compressors from Nash and Sterling SIHI. Water ring inside an eccentric housing. Discharge temperature stays within 15°C of the water temperature. Chemical plants run these on gas streams containing chlorine, ammonia, hydrogen sulfide, and entrained liquid slugs. No other compressor type can handle that service without catastrophic failure.

Roots blowers from Howden and Aerzen. Zero internal compression. Two meshing lobes push air from inlet to outlet. All pressure rise happens at the discharge port through backflow from the downstream system. Wasteful. Indestructible. Wastewater aeration and pneumatic conveying at under 1 bar gauge.

Claw compressors from Becker and Atlas Copco (DZS series). Two non-contacting claw rotors. Oil-free. Deutsche Bahn and SNCF use these for under-car braking air on rolling stock. The specification requires oil-free output across minus 40°C to plus 50°C ambient with maintenance limited to scheduled depot stops. Claw compressors meet this without complaint, which is why nobody outside the railway industry talks about them and everybody inside it relies on them.

Centrifugal and Axial

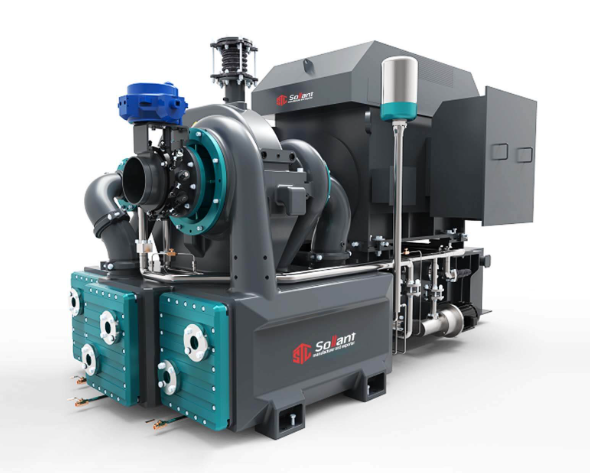

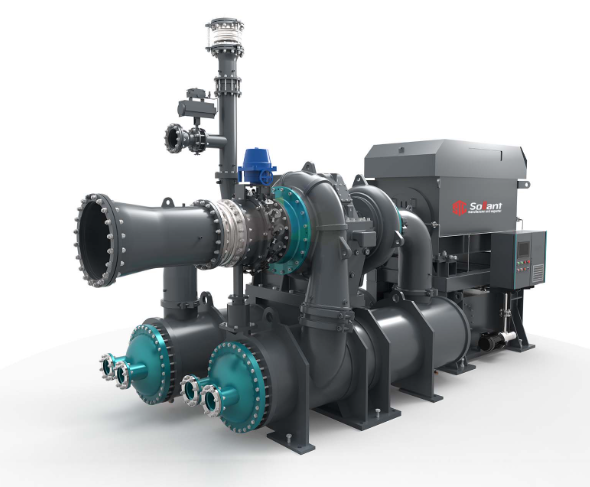

Centrifugal air compressors serve the range above 500 HP. FS-Elliott, Ingersoll Rand Centac, Atlas Copco ZH, Hanwha Power Systems. Integrally geared multi-stage designs with intercooling. Surge control is the operational center of gravity, discussed above.

Variable speed drives on the bull gear can shift the surge line and reduce blow-off losses at part load, improving energy performance across the demand range. The VFD introduces harmonic distortion on the electrical bus. Whether this matters depends on what else is on that bus. A facility with sensitive analytical instruments or variable-frequency drives on other equipment may need harmonic filtering. A facility with nothing on the bus except motors and lighting may not.

Fifteen to twenty blade stages. Flow rates in the hundreds of thousands of cubic meters per hour.

Axial compressors. Gas turbine and jet engine technology transplanted into standalone service for blast furnace blowing and wind tunnel supply. MAN Energy Solutions and Siemens Energy build these. Polytropic efficiencies above 90 percent. These are not catalog items.

Mixed-flow compressors discharge at an angle between radial and axial. Turbocharger territory. Rarely seen in plant air.

Beyond the Compressor Itself

Leak rates in North American industrial plants average 25 percent of compressor output, based on audit data from the U.S. DOE Compressed Air Challenge program. Some facilities hit 40 percent. Failed push-to-connect fittings, abandoned drops never capped, condensate drains stuck open, thread sealant that cracked three years ago. UE Systems and SDT International make the ultrasonic detectors. A leak survey with systematic repair pays for itself in under six months in every documented DOE case study. Most plants do these once and then stop.

Every 1-bar reduction in system header pressure cuts compressor energy consumption by 7 percent. Headers run at 7 to 8 bar because pressure drops through piping, dryers, filters, and regulators eat 2 to 3 bar before the air reaches the tool. Fixing the drops and lowering the setpoint costs less than a new compressor and saves more energy. It requires walking the pipe route with a pressure gauge, which is less exciting than buying equipment.

Heat recovery on water-cooled screw compressors captures 80 to 94 percent of input electricity as hot water at 60 to 90°C. Atlas Copco sells ER energy recovery modules. Kaeser sells equivalent systems. In facilities with year-round heating demand, recovered heat offsets enough fuel consumption to shift the lifecycle economics of the compressor selection.
