Compressed Air for Spray Painting Applications

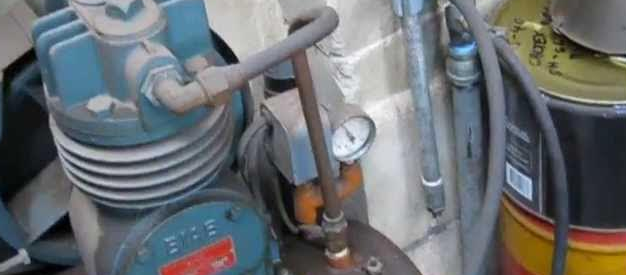

Every shop compressor puts out air that will ruin paint. The specifics of how it ruins paint vary, but the outcome doesn't.

Painting

Spray Booth Air Quality

Oil

Getting oil out of compressed air from an oil-flooded rotary screw takes three stages of filtration downstream of the dryer. Bulk coalescer, fine coalescer, activated carbon. Carbon is the expensive one to maintain and the one everybody tries to eliminate from the budget. Skip it and oil vapor passes through both coalescers untouched, enters the piping as gas, condenses back to liquid when air temperature drops anywhere in the run. Liquid oil past the filter bank.

The argument about whether carbon is necessary comes up at every single budget review in every plant that has oil-flooded compression and a paint line. The maintenance manager says the air looks clean after the second coalescer. Smells clean. White rag test, clean. All true. All irrelevant. Vapor-phase oil is invisible and odorless at the concentrations involved. A coalescing element, no matter how tight the rating, works by capturing droplets on fiber media through impaction and interception. Individual gas molecules aren't droplets. They don't get captured. They pass through the element like it isn't installed. The carbon bed downstream adsorbs those molecules before they enter the pipe. That's the function and nothing else performs it.

ISO 8573-1:2010 oil classes. Class 1 is 0.01 mg/m³. Class 2 is 0.1 mg/m³. Automotive clearcoat, aerospace primer, anything where adhesion is tested to ASTM D3359 or equivalent, Class 1. The problem with configuring for Class 2 on less demanding work and calling it good is that oil carryover from the compressor is a moving target. Ambient temperature, oil viscosity, separator element age, load profile all affect it. A system at 0.06 mg/m³ in cool weather might run 0.13 in August. Class 1 configuration adds one filter housing and a carbon vessel to a Class 2 setup and costs very little relative to the rest of the treatment train.

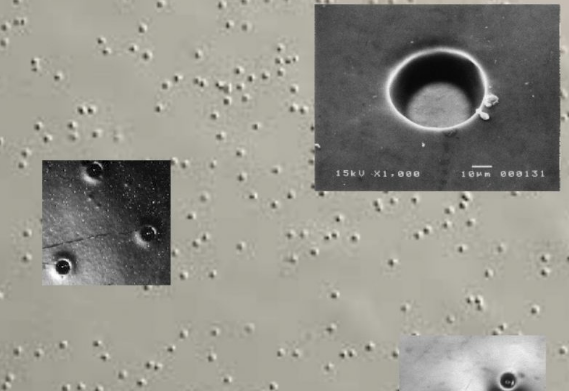

Fisheyes are the well-known oil symptom. Round craters, raised rim, paint repelled from the oil droplet. Sand and reshoot.

The failure mode that actually costs money is the one that doesn't look like anything. Oil film too thin to produce fisheyes, too thin for the naked eye, thick enough to prevent chemical bonding between coating and substrate. Paint goes on, cures, looks right, tests right, ships. Delaminates in the field months later. There's no way to identify which production dates were affected because nothing was flagged at the time. The scope of the investigation grows far beyond the actual number of bad parts because you can't determine where the contaminated window starts and stops.

Oil-free compressors don't put oil in the air because there's no oil in the compression element. No oil to filter. Dryer and particulate filters, done. They cost more upfront, airend overhauls are expensive, and they've developed a reputation as the "safe" choice for paint that isn't entirely earned. An oil-flooded machine with maintained filtration puts out the same air quality. The Atlas Copco ZT marketing literature would have you believe otherwise, but the ISO classification doesn't have a separate category for oil-free air. Class 1 is Class 1 regardless of how it got there. Where oil-free earns its premium is in shops where filter maintenance is unreliable. Skipping a carbon change on an oil-free system is a non-event. Skipping it on an oil-flooded system means vapor is getting through.

Below about 25 CFM for a dedicated paint supply, oil-free scroll compressors make straightforward sense. The capital premium is smaller at that size, the treatment simplification is proportionally more valuable, and scroll machines are dead simple mechanically. Above 50 CFM the economics tilt back toward oil-flooded-with-filtration for most shops, unless the maintenance program is genuinely unreliable, in which case the oil-free premium is essentially an insurance policy against human error.

Piping

Piping is the part of this discussion that matters most and gets the least attention. More paint defects trace to piping contamination than to inadequate air treatment equipment. The reason is simple: air treatment equipment gets upgraded, piping doesn't.

Filtration

Multi-Stage Treatment

Piping

Aluminum System

Galvanized pipe corrodes internally. This is not controversial or debatable, it's metallurgy. Condensate in compressed air lines contains dissolved CO₂ forming carbonic acid. Where compressor intakes are near combustion sources, SO₂ and NOx make the condensate more aggressive. The zinc galvanizing layer on the pipe interior erodes over years of exposure. Once it's penetrated, the carbon steel underneath rusts. Rust scale accumulates in layers on the pipe wall and periodically breaks off into the airstream. This contamination forms inside the pipe, downstream of every filter in the compressor room, and no upstream filtration can address contamination that originates downstream of it.

The diagnostic pattern is tediously predictable at this point. Shop installs new booth, paint quality is poor, particles everywhere. Equipment vendor tests air at the compressor room discharge, clean. Tests at the booth inlet, dirty. The difference between those two test points is the piping. The conversation that follows is painful because the shop just spent its capital budget on compression and treatment equipment and now someone is telling them they need to rip out 200 feet of pipe too.

That story is unremarkable. Versions of it happen constantly. The reason it keeps happening is that pipe replacement is genuinely disruptive and expensive in a running plant. It means shutdown, ceiling work, possibly cutting through walls, rerouting around things that were installed after the pipe went in. Equipment swaps are comparatively contained: unhook old unit, set new unit, connect. Done in a day. Repiping an air distribution system is a construction project.

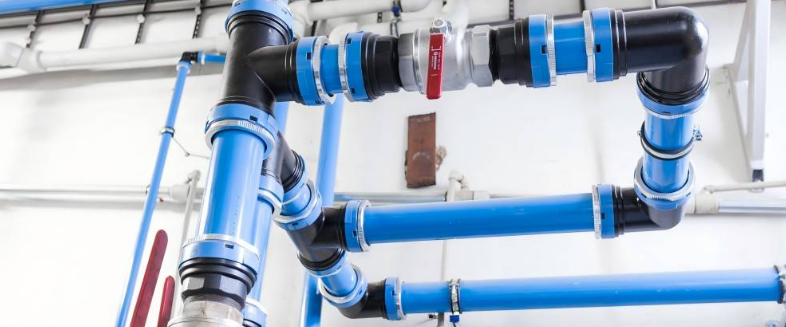

Aluminum pipe is what should be going in. Doesn't corrode, interior stays smooth, push-fit connections, light weight. Several systems on the market. They all work. Picking between them comes down to local availability and distributor support more than technical differentiation. Stainless pipe is also non-corroding and mechanically robust but costs significantly more and needs welded or press-fit joints that require skills and certifications most maintenance teams don't have in-house.

Corrosion

Old Galvanized Pipe

Supply

Dedicated Line

Condensate management in the distribution system. Horizontal pipe has to slope or water sits in it. About 1/8 inch per foot of fall toward drain points. Every low point gets a drain. Automatic drains, timer or float type, are the right answer and manual petcocks are the wrong answer for the same reason that manual anything is the wrong answer in maintenance: consistency. Manual drain schedules work for about two weeks after they're established. Then production gets busy, the mechanic gets pulled to a breakdown, the drain schedule slips to every other shift, then twice a week, then whenever someone remembers, which is usually right after a slug of water comes through the line and ruins a rack of parts.

Branch connections to paint lines from the top of horizontal headers. Water and crud settle to the bottom by gravity. A branch tapped from the top draws clean air from the upper portion of the pipe bore. A branch tapped from the side or bottom draws from the contamination zone.

A separate dedicated run to the paint booth from the main header. Not shared with blast cabinets, air cylinders, impacts, hoists, or anything else that creates demand transients. Pressure transients from other equipment closing and opening valves cause momentary flow changes that affect spray gun fan pattern stability. Also, flow transients in a pipe with deposits on the walls knock those deposits loose and send them downstream. A dedicated run isolates the paint supply from all of that.

Sags and U-traps in piping. Any low loop, intentional routing or sagging support, traps condensate at the bottom. No gravity drainage. Water accumulates for days or weeks. A high-demand event increases velocity and picks up the slug. If the booth is spraying, parts get wet. Route pipe over obstructions. Check supports periodically.

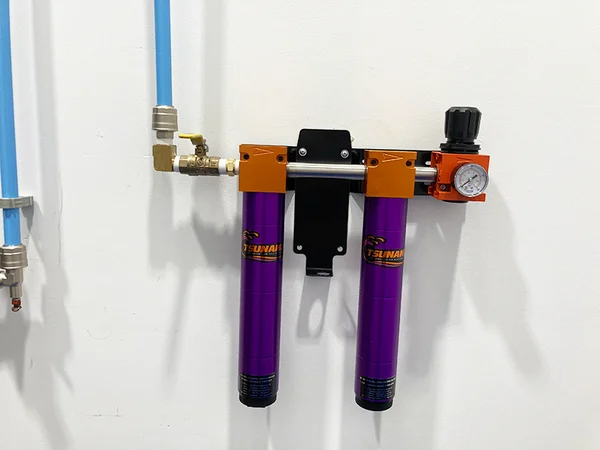

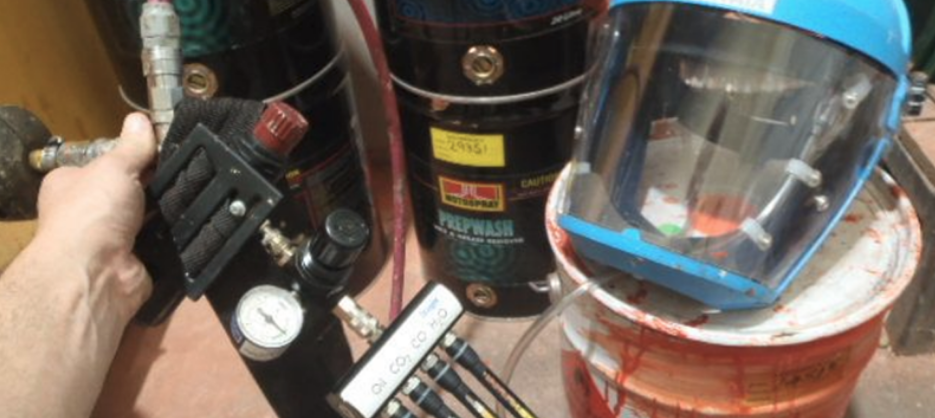

Terminal Filtration

One more 0.01-micron coalescing element at the booth end of the paint branch. Close to the gun connections. Catches what the piping contributed between the compressor room filters and the booth.

If the system is healthy this element loads slowly. If differential pressure across it climbs fast, something in the piping is generating contamination. Swapping the element without investigating is treating a symptom.

Differential pressure gauges on both sides of the housing. Maximum allowable differential per most element manufacturers is 7-10 PSI. Mark install date on the housing with a paint marker.

Moisture

Blushing and blistering. Blushing is a white haze on the clear coat from trapped moisture scattering light. Sometimes fixable with heat. Blistering is raised bumps that appear hours after spraying, moisture expanding between coats. Blistering is worse operationally because the time delay means parts may be packed before defects appear.

PDP spec: 20-25°F below the lowest temperature between dryer and gun. Refrigerated dryers do 35-39°F PDP at rated conditions. Fine in a climate-controlled building. Inadequate in a hot compressor room where inlet air exceeds the dryer's 100°F design basis and the output dew point rises above nameplate. Desiccant dryers produce -40°F PDP regardless of ambient, at the cost of purge air loss (15-18% on heatless regenerative types) or energy cost on heated types.

PDP is measured at line pressure. The moisture per unit of free air at 37°F PDP and 125 PSIG is much less than at 37°F atmospheric. By the time the air expands to 28 PSI at the gun, the effective atmospheric dew point is well below freezing. Refrigerated dryers perform better at the point of use than their nameplate PDP suggests when compared to booth temperature.

Particles

Large particles make bumps. Fine particles make rough texture. Metal particles from rusted pipe embed invisibly and bleed rust through the coating weeks later. Strip and refinish, no spot repair.

ISO 8573-1:2010 Class 2 for solids: 1 micron max, 1 mg/m³. Terminal filter at the booth handles it. The overwhelming majority of particle contamination in systems with functioning upstream filtration comes from the piping. Fix the pipe, fix the particles.

System Sizing

HVLP guns pull 8-15 CFM at 25-30 PSI inlet. Conventional guns 12-20+ CFM at higher pressure. Four HVLP guns simultaneously is around 50 CFM of gun demand. Add leakage, 5-8% on a maintained system, 25%+ on a neglected one. Add pressure drop through treatment and piping.

Buy more compressor than the peak calculation calls for. Pressure stability across all load conditions is what keeps spray quality consistent. Stability comes from having capacity margin, not from having exactly enough.
