Air Compressor Losing Pressure When Turned Off Common Causes and Solutions

Section I

Temperature

A tank at 150 PSI gauge in a 90°F shop reads about 138 PSI at 50°F the next morning. Rankine ratio, multiply through, that is 12 PSI of drop with zero leakage. Do this math before touching anything. If the observed overnight drop matches the thermal prediction, there is nothing to fix.

Section II

The Check Valve

Here is where most of the time and attention goes, because this is where most compressors actually fail, and the specifics of how and why it fails determine whether the replacement lasts a year or five years.

The check valve is a one-way gate between the pump discharge and the tank. Air goes in during the compression stroke. After shutdown, the valve closes and holds. Everyone knows this part. What gets less attention is the force balance across the valve element once the motor is off.

The return spring in a consumer compressor check valve pushes the element closed with something in the range of two to four pounds. On the other side, 150 PSI across even a small seating area generates well over fifteen pounds of reverse force. The spring is not what holds the seal. The spring just gets the element back onto the seat. After that, the seal is entirely about surface contact quality between the element and the seat. Ten-thousandths of an inch of imperfection. That is the margin.

And the environment is brutal. Discharge air at a few hundred degrees, carrying moisture, carrying oil mist on lubricated machines or abrasive piston ring dust on oil-free machines. Every cycle sends a pulse of this across the seating surface. Over months the seat roughens and the element degrades and the margin disappears. Slowly. So slowly that the pump's output masks the growing backflow for most of a year before anyone notices a problem.

This is the part that does not get written about enough: the progressive masking. A pump rated at 6 CFM with a check valve leaking back at a quarter CFM still builds pressure fine. Recovery time from cut-in to cut-out gets a little longer. Ten seconds, maybe fifteen. The leak worsens. Recovery stretches further. Duty cycle creeps up. The pressure switch starts kicking the motor on during long idle periods. At some point, months or a year into the degradation, the owner notices the gauge sagging overnight or the motor cycling when no tools are connected. By then the check valve has been failing in slow motion for a long time and the seating surface is well past the point of cleaning and reusing.

Air compressor check valve and discharge assembly

Rubber disc check valves versus metal-seat check valves. This is the single most consequential purchasing decision in this entire problem space, and almost nobody making the purchase is aware of it.

Rubber Disc

Nitrile, neoprene, sometimes Buna-N. Flat disc pressed against a flat or slightly raised metal seat by the return spring. Seals well when new because the elastomer is soft enough to conform around minor machining marks and deposits on the seat. The problem is thermal degradation of the rubber. Discharge temperatures cause cross-linking in the polymer over time. The disc stiffens. It loses its ability to conform. This happens over twelve to twenty-four months of normal use and the failure mode is not gradual the way most wear-related things are. The disc works adequately up to a certain hardness threshold and then seal quality falls apart over a few weeks. Owners describe it as the check valve "suddenly" failing when the rubber was hardening for a year.

Metal Seat

Stainless ball on a machined brass cone. Line contact seal. No elastomer. Not affected by temperature aging at all. More sensitive to particulate contamination because a flake of carbon between a steel ball and a brass cone is an immediate leak, where a rubber disc would deform around it. Over a multi-year window, not even close. The metal-seat valve wins and keeps winning because it does not have a polymer slowly cooking itself stiff.

The pricing situation around check valves is worth understanding because it affects purchasing decisions. The check valve installed at the factory cost the manufacturer under two dollars. It is a cost-optimized part. The branded replacement sold through the compressor company's website or a retail store is the same cost-optimized design at a large markup. Aftermarket parts suppliers that sell to industrial accounts and repair shops carry check valves built to a different standard. These suppliers compete on part quality because their customers are professionals who will switch suppliers over one bad experience. A twelve-dollar aftermarket metal-seat valve from an industrial supplier is a better-made part than the twenty-dollar branded OEM replacement. Less money, longer life. The OEM premium buys a logo and a plastic package.

Cracking pressure on the replacement valve: 2 to 5 PSI for single-stage compressors in common sizes. Below 2 the valve chatters and does not seat cleanly. Above 5 the pump fights unnecessary resistance every stroke.

Oil and check valve life. On lubricated machines, the oil mist in the discharge stream actually protects the check valve before it eventually carbonizes and becomes the problem. The oil film lubricates the seating surfaces and slows oxidation. Synthetic PAO-based compressor oil reduces the carbon formation substantially because it resists thermal breakdown at higher temperatures than mineral oil. This extends check valve life by a meaningful amount. On oil-free machines, the piston ring particulate is abrasive to the check valve seat and there is no oil film to slow corrosion, so check valves fail faster. A small inline filter between the pump discharge and the check valve catches the particulate before it reaches the seat.

Diagnosis: compressor off, tank full, everything disconnected from the output. Hand near the intake filter on the pump head. Warm air moving out of the intake means backflow through the check valve.

Section III

The Head Gasket

The head gasket seals between the cylinder and the valve plate, keeping the discharge passage separate from the intake passage. Blown gasket, air crosses from discharge to intake or escapes to atmosphere.

This failure gets misdiagnosed as a check valve failure constantly. The post-shutdown symptom is identical: tank bleeds down. The difference shows up during operation.

A compressor with a blown head gasket loses pumping efficiency. The recovery time from cut-in to cut-out gets longer. This does not happen with a check valve failure. A check valve failure costs air after the pump stops. A gasket failure costs air all the time, during operation and after. If the compressor has been building pressure noticeably slower than it used to AND the tank bleeds down after shutdown, the gasket is the first place to look.

Why does the tank bleed down through a gasket failure? After shutdown, tank pressure pushes backward through the check valve, through the discharge reeds, across the gasket breach, and out through the intake. The gasket breach creates a vent to atmosphere on the discharge side of the check valve. The check valve is now trying to hold 150 PSI against a complete vacuum on the other side. Even a healthy check valve, a couple pounds of spring force against sixteen-plus pounds of reverse pressure, will pass air under those conditions. The gasket failure pulls the check valve into failure. Replacing the check valve treats a symptom. The new valve resists the backflow a little better for a few months while its seating surface is fresh. Then it wears down from the same forces that killed the old one.

Gasket kits cost five to fifteen dollars. The labor is removing and reinstalling the pump head, about an hour. A compressor that has been through two check valves with no lasting improvement almost certainly has a gasket problem.

The reed valves are on the valve plate under the pump head, and if the head is coming off anyway, look at them. Spring steel strips that flex open and closed every compression stroke, a hundred thousand or so cycles per hour at typical motor speeds. Fatigue cracks develop at the corners and rivet holes after extended service. A cracked discharge reed does not seat flat and allows backflow. Visible with the naked eye in most cases. Replacement kits cost almost nothing. Not a common failure on low-hour compressors. On machines that have been running for years, worth the thirty seconds it takes to inspect while the head is already off.

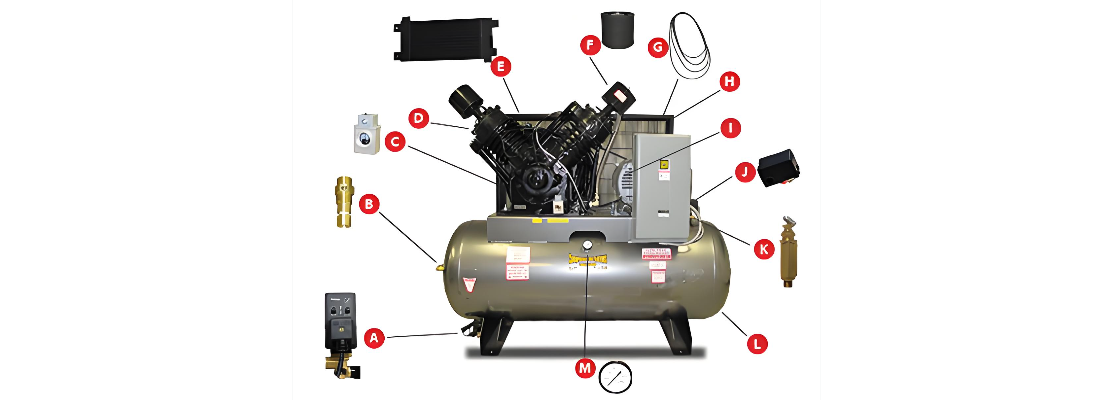

Air compressor pump head gasket and valve plate

Section IV

The Unloader and the Check Valve Together

The unloader vents the discharge tube at shutdown. Opens briefly, hisses, closes. A pin or plunger driven by a linkage from the pressure switch. The closing depends on a weak spring pushing the pin home after the pressure switch toggle releases it. Friction on the toggle from corrosion or dirt can leave the pin a fraction of a millimeter short of fully seated.

This cannot be diagnosed separately from the check valve and trying to do so wastes time. The unloader is on the pump side of the check valve. Tank air has to get past the check valve to reach the unloader. If the check valve is sealing perfectly, a stuck-open unloader has no effect on tank pressure because no air reaches it. If the unloader is sealing perfectly, a leaking check valve still loses air through the pump intake. When both are partially worn, which is the expected condition on anything with a few years of service, they combine to create a leak path: tank through check valve, through discharge tube, out the unloader vent.

Replacing the check valve alone gives temporary relief. The fresh valve slows the backflow. The unloader is still cracked open, still providing a destination for whatever backflow gets through. The new check valve's seat degrades from the sustained reverse flow (because there is always a pressure differential pulling at it as long as the unloader is venting), and within months the symptom returns.

Test both at once. After shutdown, finger over the unloader vent port. Pressure against the finger means the check valve is leaking and the unloader is not closed. One observation. Fix both: check valve replacement plus verifying that the pressure switch toggle returns fully to rest so the unloader pin snaps home. If the toggle is sticky, replace the pressure switch assembly. Twenty to forty dollars, unloader mechanism included.

Section V

Everything Else

The pressure switch itself can leak through a cracked sensing diaphragm or bourdon tube, venting tank air through the switch body. Unusual failure. Hard to find with soapy water because the leak exits through internal passages. Pull the switch, cap the port with a brass plug, see if the tank holds. Five minutes.

Drain valve. Petcock. Sits in condensate, corrodes. Replace with a quarter-turn ball valve. Done.

Fittings. Every NPT connection relies on tape or anaerobic sealant to fill the thread spiral. Vibration works them loose over thousands of hours. The gauge port is the one that gets neglected. Soapy water, twenty seconds per joint.

One practical note on sealant that belongs here even though it is not exciting: anaerobic sealant needs one to three days to fully cure. A joint assembled and immediately pressurized to full working pressure may hold on mechanical thread engagement alone, and then fail weeks later because vibration disrupted the sealant before it set. Pressurizing to 40 or 50 PSI and letting the system sit overnight before full-pressure operation gives the sealant time to cure. This prevents a category of fitting leak that shows up weeks after assembly and gets blamed on the fittings rather than on the installation procedure.

Internal tank corrosion from standing condensate. CO₂ from the compressed air dissolves into the water and forms carbonic acid. Corrodes carbon steel. Concentrates at the waterline. Forms pits that penetrate faster than the average wall thickness measurement suggests. Tanks with standing water can develop wall penetrations in a few years. Drain after every use. If soapy water bubbles on the tank shell where there is no fitting or weld, the tank is finished. No weld repair, no patching, not at these operating pressures.

Two-stage compressors can develop inter-stage leaks through the intercooler or its connections. After shutdown, tank pressure pushes backward through the second-stage valves and out the breach. Distinctive symptom: the tank bleeds down to a pressure somewhere around 50 to 80 PSI and then stabilizes. It stabilizes because once tank pressure drops below the threshold needed to force the second-stage valves open, the backflow path closes. A single-stage compressor does not produce this symptom pattern, so if a tank bleeds to an intermediate pressure and parks there, inter-stage leak.

Air compressor tank and fittings inspection

Section VI

Finding the Leak

Temperature math first. If the thermal prediction accounts for the drop, stop.

Disconnect the downstream side. If the tank holds, the problem is downstream, reconnect one piece at a time. If the tank drops, soapy water on the drain valve and every fitting, especially the gauge port. Then hand near the intake filter and finger on the unloader vent. If the compressor has also been taking longer to build pressure, pull the head and check the gasket and reeds before buying a check valve.

Compressors with several years of service often have partial degradation on multiple components at once. A slightly worn check valve, a sluggish unloader, and a loose gauge fitting can add up to a combined leak rate that does not trace back to any single dramatic failure. Sometimes the only practical approach is to fix the most suspect component, retest, and work through the list.

Section VII

Consequences of Ignoring the Problem

The pressure switch sees tank pressure below cut-in and starts the motor. If a leak causes this to happen frequently, the motor takes repeated inrush current hits that keep the winding temperature elevated. Winding insulation degrades from heat. The pump accumulates unnecessary runtime that wears rings, bearings, and valves. The tank sees extra pressure cycles. A check valve failure at ten dollars, unaddressed for a year, turns into a dead motor or a compressor that is no longer economical to repair.
