Air Compressor Excessive Oil Consumption: A Root Cause Analysis

The pathway the compressed air filtration industry is built around, and the one that every compressor maintenance manual covers thoroughly. Turbulent gas at the discharge port shears the oil film into droplets, mostly in the 1 to 3 micron range when the machine is at rated temperature. Coalescing elements capture these by inertial impaction. The particles deviate from gas streamlines and hit glass fibers. Well understood.

The interesting part is what happens when temperature changes the aerosol. On a GA55 running Roto-Inject Fluid with an 85 degree sump, the discharge port sits 15 to 20 degrees above the sump thermometer. At 105 degrees the oil's kinematic viscosity is roughly half of what it was at 85. Surface tension has dropped with it. The Weber number at the atomization point has increased, and the median droplet size shifts from about 1.5 microns down toward 0.7. At 0.7 microns the droplets sit in the valley of the separator's fractional efficiency curve, right around the MPPS, and a coalescing element that delivers 99.5 percent capture at 1.5 microns might manage 95 percent at 0.7. On a machine injecting 15 liters per minute of oil into the compression chamber, that efficiency drop translates to a large absolute increase in downstream oil.

Every lubricant has a vapor pressure curve. Below about 90 degrees Celsius at the separator inlet, vapor-phase oil concentration in the compressed gas is low enough to ignore for most formulations. Above 90, the exponential kicks in. A Group II mineral base stock at 100 degrees in 8 bar air contributes something like 8 to 12 ppm of vapor, depending on the specific product's molecular weight distribution. At 110 degrees, which is where a machine ends up when the oil cooler is running at 70 percent effectiveness on a 38 degree day, 25 ppm or more from vapor alone.

Lubricant selection is the specific corrective tool here, and it is almost never part of the conversation. Mobil Rarus SHC 1025 and comparable PAO-based products have meaningfully lower vapor pressure above 90 degrees than Group II mineral oils in the same ISO 46 or 68 grade. PAO base stocks have a tighter molecular weight distribution, fewer volatile light-end fractions. Selecting a compressor lubricant based on vapor pressure data at the measured separator inlet temperature is a targeted intervention for vapor-dominated consumption, and it is different from selecting a lubricant based on viscosity grade and OEM approval listing, which is how nearly all purchasing decisions are made. The vapor pressure data is not on the product data sheet. Shell does not publish it for Corena. Mobil does not publish it for Rarus. Getting it requires a specific request to the technical service group, not the sales team, and the request should ask for values at 80, 90, 100, and 110 degrees rather than accepting a single number at 40.

Oxidation over the service interval complicates this further. Thermal cracking of the base stock produces lighter molecular fragments with higher vapor pressure. An oil that contributes 2 ppm of vapor at 95 degrees when fresh from the drum may contribute 5 or 6 ppm at the same temperature after 3,000 to 4,000 hours, because the molecular weight distribution has shifted. TAN trends track this degradation. Oil consumption should be trended against lubricant age, not sampled at one point in time.

This gets the longest treatment in this article because it is the component with the most diagnostic leverage per dollar of intervention cost, and it sits outside the awareness of most maintenance teams.

Oil-flooded screw compressors have a small tube, 3 to 6 mm bore depending on model, connecting the bottom of the separator element housing to a low-pressure tap on the airend, typically at the intake manifold or at the compression chamber near the suction phase. Atlas Copco GA-series units use a 4 to 5 mm line. Kaeser SK/SX units are similar. Smaller CompAir machines run about 3 mm. A calibrated orifice at the downstream end meters the return flow and prevents gas bypass.

The separator element catches oil and drains it by gravity to the bottom of the housing. The scavenge line returns this oil to the compression circuit. If the return path is restricted, the oil accumulates.

Varnish restricts the orifice. It always does, given enough time. Lubricant degradation products form a hard lacquer on hot metallic surfaces with low flow velocity, and the scavenge orifice is a small-bore metal passage carrying a trickle of hot oil. On a 4 mm orifice, 0.25 mm of varnish on each wall takes the effective bore to 3.5 mm, a 23 percent reduction in flow area. The coalesced oil return rate drops below the coalescence and drainage rate. A pool forms in the separator housing. On a standard Ingersoll Rand SSR or UP-series unit, the housing volume below the element is small. The pool rises until it contacts the element's lower face. Gas flowing through the element re-entrains the pooled oil.

The separator is functioning. It captured the oil. The oil came back because the drain path is partially blocked.

This cycle can repeat three, four, five times. Each time, the element gets blamed. The orifice does not get inspected because there is no line item for it in the PM schedule, no sensor monitoring it, and no mention of it in the OEM's published troubleshooting tree.

A sight glass in the scavenge line, which some OEMs install and many do not, shows steady oil flow during operation when the line is clear. On machines without a sight glass, temporarily loosening the scavenge line fitting at the airend connection during operation confirms whether oil is flowing. If the flow is weak or absent, the orifice needs cleaning or replacement.

There is a secondary failure on units where the scavenge line incorporates a check valve. Varnish on the valve seat can hold it closed even with a clear orifice and a clear line. The check valve should be inspected in the same procedure. And on installations where the scavenge line routing passes near the discharge pipe or oil cooler housing, the additional heat accelerates varnish formation inside the tube itself, not just at the orifice. Rerouting the line away from heat sources reduces the accumulation rate.

Anti-foam additives in compressor lubricants are silicone-based surfactants that suppress foam by reducing the oil's surface tension, typically by 15 to 20 percent below the unadditivated base stock. Surface tension is also a primary variable in the Weber number governing aerosol formation at the discharge port. Lower surface tension means finer droplets at the same gas velocity and oil viscosity. The separator was designed around the aerosol characteristics that correspond to one surface tension value.

Shell Corena S4 R and Mobil Rarus SHC 1025 are both PAO-based ISO 46 compressor lubricants. Viscosity at 40 and 100 degrees is nearly identical between them. Viscosity indices are similar. OEM approval lists overlap. Their additive packages differ, and with them, their surface tension at operating temperature. Neither manufacturer publishes surface tension on the standard data sheet. The parameter is not part of ISO 6743-3.

Screw compressors in most installations run at reduced capacity for a large fraction of their operating hours. A 75 kW machine sized for a peak demand that occurs two hours per shift spends the remaining six hours at 40 to 60 percent load. Gas flow through the separator is proportionally reduced. The face velocity across the coalescing element drops below its design target of approximately 0.06 m/s.

At reduced face velocity, impaction efficiency on particles above 1 micron decreases because the inertial parameter drops with velocity. Diffusion efficiency on particles below 0.3 microns may increase because residence time is longer. Particles near the MPPS, roughly 0.2 to 0.5 microns, sit in a zone where neither mechanism gains much from the velocity change.

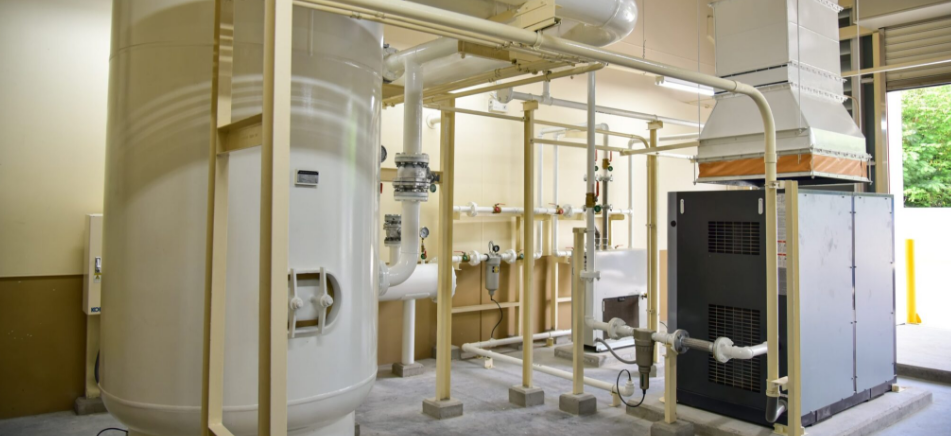

Discharge temperature equals suction temperature plus compression heating. Suction temperature equals the air temperature in the room. In a concrete-block compressor room with a closed door, no forced ventilation, and the oil cooler and aftercooler rejecting their full heat load into the same space, room ambient settles at whatever the building envelope can passively dissipate to the outdoors.

On a 35 degree day in that room, 50 to 55 degrees at the intake is plausible. The discharge temperature ends up 20 to 25 degrees above what the OEM assumed. Every temperature-dependent oil transport pathway worsens. The machine is mechanically sound. The separation system is correctly configured for its design thermal basis. The room has invalidated that thermal basis.

The bore hone specification matters. Rvk controls the volume of oil retained in the valley structure per unit area of cylinder bore. A rebore that hits the diameter tolerance and misses the Rvk target can double the oil film available for gas-side transport on each stroke. In screw compressors, film carryover presents as a visible wet coating inside the discharge pipe and is a minor contributor to total consumption. There is not much to say about it beyond specifying the bore finish correctly during overhaul.

Specific to reciprocating units. Gas pressure behind the piston ring augments ring tension to create the bore seal. At certain speed and pressure ratio combinations during the expansion stroke, the pressure differential reverses momentarily and the ring lifts. Oil passes from crankcase to cylinder. Static inspection of rings, bore, and end gaps reveals nothing because the failure is dynamic.

Mapping oil consumption across a speed-pressure matrix identifies flutter when consumption is sharply elevated at a specific operating point and normal at others. Most reciprocating compressor shops do not have the instrumentation or the time allocation for this mapping, which is why ring flutter survives multiple rebuild cycles undiagnosed. The fix, when identified, is either a ring specification change or avoidance of the problematic operating point.

Moisture in the sump emulsifies with oil, the emulsion foams under mechanical agitation from return oil flow, foamed oil atomizes at much lower energy thresholds than bulk oil. The consumption spike persists until the emulsion separates, which depends on the lubricant's demulsibility rating per ASTM D1401 and sump residence time. Karl Fischer titration on a routine oil sample catches it retrospectively. Above 200 ppm water in a sump that should be below 100 ppm is the flag. Most small and mid-size compressed air installations do not perform routine oil analysis, and the water event goes undetected.

The glass fiber bed develops preferential flow paths after hundreds of thermal cycles from load/unload operation. Gas flows faster through these channels. Sub-micron particles that depend on diffusion, and therefore on residence time, pass through. Differential pressure reads normal or low because the channels represent reduced resistance. The element is selectively failing at the particle sizes that matter for total mass carryover while appearing healthy on the gauge.

A separator element at 1 bar differential pressure on a 200 kW compressor at 8 bar discharge draws approximately 25 kW of shaft power as parasitic pressure drop. That 25 kW also converts to heat at the separator, raising gas temperature at the one location where temperature most directly governs vapor-phase loss. Elevated differential pressure wastes power and worsens oil consumption simultaneously.

The scavenge line first. On any oil-flooded screw compressor. Pull the orifice, inspect it, clean or replace. Fifteen minutes. Addresses the single most common contributing factor.

Then temperatures. Discharge port, separator inlet, room ambient, outdoor ambient. Calculate the room heat buildup. Look up the lubricant's vapor pressure at the measured separator inlet temperature from the supplier's technical data. If vapor contribution at that temperature exceeds a few ppm, the thermal path is the priority: oil cooler effectiveness, room ventilation, or both.

Separator differential pressure trend over the preceding months, not the current reading alone. Low delta-P with high consumption points to vapor. Plateau below the replacement threshold with rising consumption suggests micro-channeling. Rapid rise to the replacement limit is a normally loading element.

Oil sample. Karl Fischer for water. Viscosity at 40 and 100 degrees. TAN. Foam tendency per ASTM D892. If there was a recent lubricant brand change, surface tension data from both suppliers' technical departments.

Compressor control log over several days. Percentage of hours at full load, part load, unloaded. If most hours are part load, the separator is spending most of its time off its design point, and the consumption rate may be the normal rate for those operating conditions rather than evidence of a fault.
