Air Compressor Not Building Pressure Building Pressure A Complete Diagnostic

Most compressor pressure failures get misdiagnosed on the first attempt. The fault is rarely hidden or exotic. The diagnostic just skips to the pump internals when the problem is external. A compressor that runs and will not fill the tank has a seal failure somewhere in the compression chain, and too many possible failure points produce the same gauge reading from outside the machine for guessing to have good odds.

The chain is short. Piston down, intake reed valve opens, air enters the cylinder. Piston up, intake reed closes, air compresses, discharge reed opens, compressed air flows through a tube into the tank. A check valve keeps it from coming back. Seal failure at any of those points reduces the net air reaching the tank. The seals also degrade in ways that feed each other. A slightly leaking intake valve means the pump has to compress the same air charge more than once to get it into the tank, because some of it escapes backward on each stroke. That extra work shows up as heat. The cylinder runs a few degrees hotter than it should. Piston rings do not care about a few degrees in the short term, but over hundreds of hours the accelerated thermal cycling eats into their service life. As the rings wear, compressed air starts blowing past the piston into the crankcase. The crankcase was not designed to hold pressure. Oil gets pushed past seals, migrates up to the valve plate, and carbonizes on the hot reed seating surfaces. Now the discharge reed has a carbon fouling problem that did not exist when the intake reed first started leaking. The whole sequence can play out over six months, starting from one marginally leaking reed and ending with a compressor that needs a complete top-end rebuild.

The compressor has to be warm when the test happens. Not "running for thirty seconds" warm but twenty-minutes-into-a-pump-cycle warm. Thermal expansion opens leak paths that do not exist on a cold machine, the drain valve especially. Warm the compressor up first. Then soap everything.

Most of the fittings on a compressor tank were assembled with PTFE tape, and PTFE tape has a specific weakness on compressors that it does not have on household plumbing: vibration. Reciprocating pumps shake the tank and everything threaded into it for as long as the motor runs. Tape seals by filling thread valleys with a soft, deformable film, and that film compresses and thins over months of cyclic vibration. A fitting that was tight at assembly can start seeping six months later without anyone having touched it. PTFE paste sealant fills thread imperfections more completely and holds up better. Anaerobic thread sealant (Loctite 545 or equivalent) goes further and cures into a rigid polymer inside the joint, providing a bond that is both chemical and mechanical. For compressor plumbing, either paste or anaerobic compound outperforms tape over the long haul. The per-joint cost difference barely registers. The difference in nuisance leak rate over a couple of years is measurable, especially on compressors that run frequently and shake their fittings for hours per day.

The Drain Valve

Everybody checks fittings. Almost nobody checks the drain valve with any real suspicion. The brass petcock at the bottom of the tank sits in a slurry of condensate, rust, and oil residue that grinds into the valve seat over years of service. The handle points to "closed." Air passes through anyway.

Brass and the valve stem expand at different rates when heated. A petcock that tests tight at room temperature can open a gap at operating temperature. Owners who do their soap test on a cold compressor find nothing wrong, spend an afternoon pulling the pump head apart, and miss the fact that the drain valve was bleeding pressure the whole time. This is not a rare scenario. It plays out constantly. The compressor fills the tank while the petcock quietly lets it back out, and the two rates of flow nearly balance each other, so the gauge creeps up just enough to look like a "weak pump" problem instead of a leak problem.

Swap the petcock for a quarter-turn ball valve. The ball valve seats differently, tolerates the debris that collects at the tank bottom, and does not have the differential expansion issue. The swap takes fifteen minutes and a wrench. Some compressor owners go a step further and add a short nipple and a hose barb below the ball valve so the condensate drains into a bottle instead of onto the floor, which makes people actually drain their tanks instead of putting it off because the water sprays everywhere. More frequent draining reduces the amount of corrosive slurry sitting in the tank and at the valve seat, which reduces internal tank corrosion, which is the thing that eventually kills tanks from the inside on compressors that are otherwise mechanically fine.

The Unloader

The unloader sits near the pressure switch. It dumps trapped discharge-line pressure when the compressor shuts off so the motor does not have to restart against a slug of compressed air. During operation it should be fully closed. When it sticks partially open it vents air continuously while the pump runs. The hiss is completely inaudible over compressor noise.

What makes the unloader particularly effective at generating misdiagnosis is that the pressure-building rate with a stuck unloader looks exactly like gradual pump wear. The compressor runs, air reaches the tank, the gauge moves, just slowly. Nothing sounds broken. Nothing looks broken. The compressor seems old and tired, and the obvious conclusion is that the pump needs a rebuild. On compressors in shops where nobody has heard of the unloader valve or knows what it does, that conclusion goes unchallenged. The pump gets rebuilt. The unloader, stuck open before the rebuild and still stuck open after, keeps bleeding. Sometimes the problem seems to go away because a freshly rebuilt pump delivers slightly more air per stroke than the worn one, enough to overcome the unloader bleed and reach cut-out. Six months later, as the new valve plate and rings accumulate normal wear, the compressor starts failing to build pressure again. A second rebuild gets ordered.

Voltage Before Valve Plates

A compressor motor on low voltage often starts and runs. It just runs slower. The pump turns, air moves, pressure climbs, but at a fraction of the expected rate. From the outside this looks and sounds like a pump that has lost compression. The person troubleshooting checks for leaks, finds none, inspects the valve plate, sees nothing obviously wrong, and starts wondering about rings and a pump rebuild. The pump is fine. The motor has been getting 105 volts instead of 120 the entire time.

Measured numbers from a BobIsTheOilGuy forum test: 50 feet of 12 AWG extension cord dropped a steady 5 volts at 10 amps BobIsTheOilGuy. At 15 amps through a longer cord or a thinner gauge, the drop gets worse. Pro Tool Reviews published an extension cord sizing chart based on NEC voltage drop tables showing a 100-foot 12-gauge cord at 15 amps sitting right at the 5% maximum recommended drop Pro Tool Reviews. A 16-gauge cord at that length exceeds it. These are not exotic scenarios. A 50-foot 16-gauge cord is exactly what most hardware stores sell for "outdoor/workshop" use, and it is exactly what gets plugged into a compressor when the outlet is across the garage.

Even without an extension cord, voltage problems can come from the building wiring itself. A 15-amp compressor on a circuit that also feeds shop lights, a battery charger, and a radio is sharing the circuit's capacity. During the compressor's start-up surge, which can briefly draw two to three times the running amperage, the voltage on the whole circuit sags. On circuits with undersized or long wire runs from the breaker panel, the sag may be enough to noticeably reduce the motor's running speed once it settles into its operating load. Checking the voltage at the outlet with a multimeter while the compressor is running, not while it is off, is the only way to confirm adequate supply.

Run capacitors go bad on a longer timeline. The capacitor maintains the motor's torque-producing phase relationship in the windings. As the capacitor loses capacitance over months or years (heat and vibration accelerate the degradation of electrolytic capacitors), the motor weakens gradually. Still runs. Still sounds roughly normal. Output drops slowly enough to look like progressive mechanical wear inside the pump. The confusion is compounded by the timeline: the capacitor degrades over the same sort of multi-year timeframe that piston ring wear occurs on oil-free compressors, so the symptoms not only look the same but show up on the same schedule. A multimeter with capacitance measurement tests the cap in two minutes. Below about 80% of rated value, swap it. It is a cheap part and it eliminates a whole category of doubt about the motor's contribution to the problem.

The Valve Plate

Pull the cylinder head off and the valve plate is right there. Two reed valves on one plate: the intake reed opens to admit air during the piston's downstroke and closes during compression, the discharge reed opens under cylinder pressure to push air toward the tank. Both are thin steel pieces flexing open and shut hundreds of times per minute.

Carbon buildup on the seating surfaces is the most common valve plate fault on oil-lubricated compressors, and it connects to which oil is in the crankcase. Non-detergent petroleum compressor oil, the correct oil type for most reciprocating pumps, carbonizes at compression temperatures. The carbon accumulates where the reed contacts the seat and prevents full closure over time. Synthetic compressor oil generates less carbon. Champion notes extended valve life from reduced carbon buildup for their synthetic formulation Aircompressorcfm. On the Garage Journal, owners who switched from conventional to synthetic reported that conventional oil "looked like puke in fairly short order" while synthetic came out looking almost new after hundreds of hours The Garage Journal. DeVilbiss recommends breaking in on petroleum oil for the first 300 hours before switching to synthetic The Garage Journal. The rings need the slightly higher friction of petroleum oil to seat against the bore during initial service. After break-in, synthetic reduces valve plate carbon accumulation without affecting ring lubrication.

Compressors near the coast or in tropical climates have a separate valve plate problem that has nothing to do with oil type. Moisture in the intake air condenses directly on the steel valve plate during compression, and between cycles that moisture sits on the seating surfaces and promotes corrosion pitting. The pits are too fine to see without magnification. A plate that looks clean on inspection may already be leaking at every compression stroke through microscopic corroded channels in the seat. Stainless steel valve plates exist for some pump models, but most owners do not know to ask for them and most shops do not stock them.

Reeds also crack from fatigue, though this takes longer to develop than carbon fouling and follows a different pattern. The stress concentration is at the base where the reed mounts to the plate. Each flexion cycle adds fatigue, but the cycles are not all equal. A cold-start cycle does more damage than a mid-run cycle because the reed goes from rigid to flexing under thermal shock within seconds. Short-cycling compressors accumulate cold-start thermal shocks at a rate that dwarfs what a larger-tank compressor sees. A compressor with a small tank starting every two minutes versus one with a larger tank starting every fifteen minutes: the reeds in both pumps may be identical parts, but the small-tank compressor's reeds accumulate fatigue damage many times faster per hour of air delivered.

Industrial valve data confirms this relationship between cycling and life. Eng-Tips discussion on reciprocating compressor valve reliability: 0.04-inch lift valves lasted 25,000 hours, 0.08-inch lift valves reached about 8,000 Eng-Tips. Consumer reeds are built to looser specs, but the connection between lift, cycling pattern, and fatigue life does not change with quality tier.

Replace the complete valve plate assembly when doing this repair, not just individual reeds. The seats on the plate develop shallow depressions from years of reed impact. New reeds on a worn plate with concave seats do not seal.

Check Valve

Pressurize the tank partway. Shut the motor off. Watch the gauge. If tank pressure drops over the next several minutes with nothing connected and no tools running, the check valve is leaking backward.

The drop can be slow. A check valve with a small flake of scale wedged in the seat might leak the tank down from 100 PSI to 80 PSI over twenty minutes, not in two. An impatient test that watches the gauge for sixty seconds and calls it good will miss a check valve that is in fact failing but failing slowly. Give the test at least ten minutes.

Confirm by disconnecting the discharge tube at the pump end (not the tank end) with the tank partially pressurized and the motor off. Air hissing from the tube toward the pump side means the check valve is not sealing. On a good check valve, nothing comes through that tube at all, regardless of tank pressure.

During operation, the check valve leak-back has a subtler effect: on each intake stroke, while the cylinder is drawing in fresh air through the intake valve, compressed air from the tank sneaks backward through the leaking check valve and into the pump head. The piston has to re-compress that leaked-back air on the next stroke, wasting displacement. The net amount of new air reaching the tank per cycle is reduced. The compressor runs and builds pressure, just more slowly than the pump's CFM rating says it should. This symptom overlaps with ring wear, valve plate degradation, and voltage problems, which is why the check valve test (shut the motor off and watch the gauge) needs to happen before drawing conclusions about internal pump condition.

Brass spring-loaded poppet check valves last longer than stamped-steel flapper types. The spring holds the poppet shut regardless of how level the compressor is or how much the machine vibrates. Flappers rely on gravity and need the machine level. On portable compressors that get hauled around job sites and set down on uneven surfaces, a flapper check valve is at a permanent disadvantage.

Rings and Bore

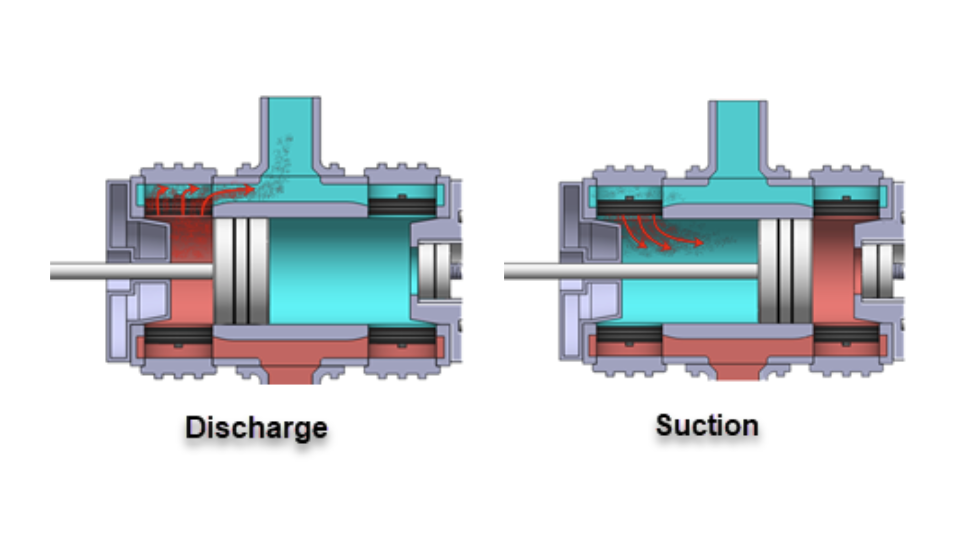

Piston ring wear shows up late in the diagnostic because it requires opening the pump. Blow-by, compressed air leaking past the worn rings into the crankcase during compression, is the telltale. On oil-lubricated compressors the signs are visible without disassembly: oil mist near the crankcase breather, oil puddles forming under the vent, the crankcase oil level dropping faster between changes. On some compressors with sight glasses, the oil visibly foams during operation because pressurized blow-by gas is aerating the sump. Ring wear on oiled compressors is slow, typically thousands of hours, because the oil film between the ring and the cylinder wall reduces friction and carries heat away from the contact surface.

Oil-free compressors do not give those visual warnings. There is no oil to consume, no breather to smoke, no sump to foam. The only symptom is that the fill time gets a little longer. Then a little longer than that. The tank that used to fill in two minutes takes two and a half. Then three. The PTFE-composite rings in oil-free pumps reduce friction by sacrificing their own material against the cylinder wall, which is the "self-lubricating" property that the marketing talks about. The ring wears itself away with every stroke and nothing replenishes it. One manufacturer lists 7,500 hours for their industrial-grade PTFE compressor rings Made-in-china. Consumer oil-free pumps use thinner rings, often cheaper PTFE compounds, running at higher temperatures in smaller cylinders with less thermal mass. They reach end-of-life well before that industrial figure. Owner discussions on the Garage Journal consistently identify the rings as "really the primary failure point, at least the one unique to oilless vs oiled compressors" The Garage Journal. Some owners report a decade of light-duty home shop service, others see degradation in two or three years with heavier use. Each individual change in fill time is too small to notice, especially on a compressor that is not used every day. The owner does not realize performance has degraded until the compressor can no longer reach cut-out pressure at all, and by then the rings are well past the point of a simple swap. If the worn rings have been running long enough against the bore, the cylinder wall itself may be scored or polished smooth, and new rings will not seal against it.

With the head off, check the cylinder walls for the factory cross-hatch honing pattern, the fine intersecting lines machined into the bore surface. Those lines hold oil on lubricated models and help seat the rings on all models. An article in Mechanical Business on reciprocating compressor failures: if the cross-hatching has worn away, the compressor should be replaced Issuu. New rings will not seal against a smooth bore. On aluminum cylinder walls, the honing marks are sometimes hard to see visually; running a fingernail lightly across the bore surface should produce a faint catching or rasping sensation if the cross-hatch is still present. A bore that feels glassy smooth is a bore that needs replacing or re-honing.

Head gasket blow-through: a dark erosion track burned across the gasket face where compressed air has been channeling through. Once that erosion track starts it accelerates, because the material loss narrows the gap and speeds up the air passing through it. Inspect the gasket whenever the head comes off for any reason. Gasket kits are included with most valve plate kits, so there is no cost reason to skip the replacement.

Two-Stage Intercooler

Single-stage diagnostic procedures will not find this. The intercooler tube between the low-pressure and high-pressure cylinders on a two-stage compressor cools the first-stage compressed air before it enters the second stage for further compression. Leaks at the tube fittings or corrosion pinholes in the tube wall vent partially compressed air to the atmosphere before it reaches the high-pressure cylinder. The second-stage cylinder runs cooler than expected because it is getting less air volume than it should, and the compressor takes longer to reach its higher cut-out pressure (two-stage compressors typically cut out at 155 to 175 PSI). The intercooler connections should be part of the soapy water test, but on most two-stage pump configurations the tube sits in a cramped location between the two cylinders where getting a brush with soapy water onto the fittings is awkward. This is probably why it gets skipped, and it is probably why two-stage intercooler leaks persist until someone tears the pump down for a different suspected fault and finds wet fittings or green corrosion on the tube.

Pressure Switch

Only matters when the motor shuts off below the expected cut-out pressure. If the motor runs continuously while pressure stalls, the switch is not involved. Check the cut-out setting and clear the sensing port of moisture or debris.

Belts

On belt-driven compressors, a glazed or loose belt lets the motor spin at full speed while the pump turns slower. Check belt condition and tension. Half an inch of deflection pressed firmly at the midpoint between pulleys.

A partially sheared flywheel key is a rare failure that is almost undiagnosable without knowing it exists. The key locks the pump flywheel to the crankshaft. When it partially shears, the flywheel slips intermittently on the shaft. Belt looks fine, tension is fine, motor runs at full RPM. The pump catches and slips in an irregular rhythm. The sound changes subtly under load. A technician encountering this for the first time will exhaust every other possibility before thinking to pull the flywheel and look at the keyway.

Heat, Altitude, CFM

Hot air is less dense. Fewer molecules per intake stroke, less pressure per cycle. A compressor in an unventilated enclosure or parked in direct sun builds pressure noticeably slower than the same machine with airflow around the pump head. The pump also runs hotter internally, which hurts ring and valve seal effectiveness through thermal expansion. On a 95-degree afternoon in a closed garage, a compressor that marginally reaches 125 PSI cut-out on a cool morning might stall at 115 and sit there running. Nothing broke.

Altitude does roughly the same thing through a different mechanism. At 5,000 feet the air is about 17% thinner than at sea level. Each intake stroke captures less. Stack that on top of a warm day, a slightly clogged filter, one fitting that started seeping from vibration, and the compressor drops below cut-out without any single cause being sufficient on its own.

CFM mismatches are not a diagnostic issue at all, but they show up in diagnostic threads constantly because the symptom looks the same. An impact wrench that wants 8 CFM connected to a compressor rated at 5 CFM at 90 PSI will drain the tank faster than the pump fills it. The compressor runs without pause, the gauge drops during use, recovery takes too long. The compressor is not broken. It is undersized. Sandblasters are the other common offender. No amount of valve plate inspections or extension cord upgrades will change the math on a tool that consumes more air than the pump can produce.
